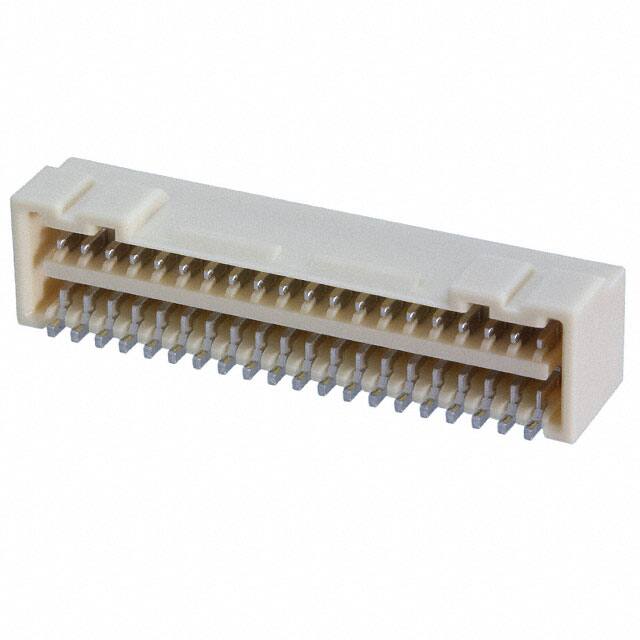

5041894070

Specifications

Montaj Tipi

Surface Mount, Right Angle

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Insulation Height

0.241 6.13mm

Operating Temperature Max

85°C

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Contact Shape

Rectangular

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Contact Finish Mating

Tin

Pozisyon Sayısı

40

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99

Seri

Micro-Lock 504189

Sıra Sayısı

2

Insulation Resistance

100000000Ohm

Mating Contact Pitch

0.049 inch

Number Of Conductors

ONE

Body Length Or Diameter

1.098 inch

Terminal

Solder

Durability

30 Cycles

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

JESD-609 Kodu

e3

Insulation Color

Natural

Fabrika Tedarik Süresi

11 Weeks

Pitch Mating

0.049 1.25mm

Rated Current Signal

1.5A

Fastening Type

Latch Lock

Yayın Yılı

2014

Contact Type

Male Blade

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Mounting Option1

LOCKING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

39.4μin 1.00μm
