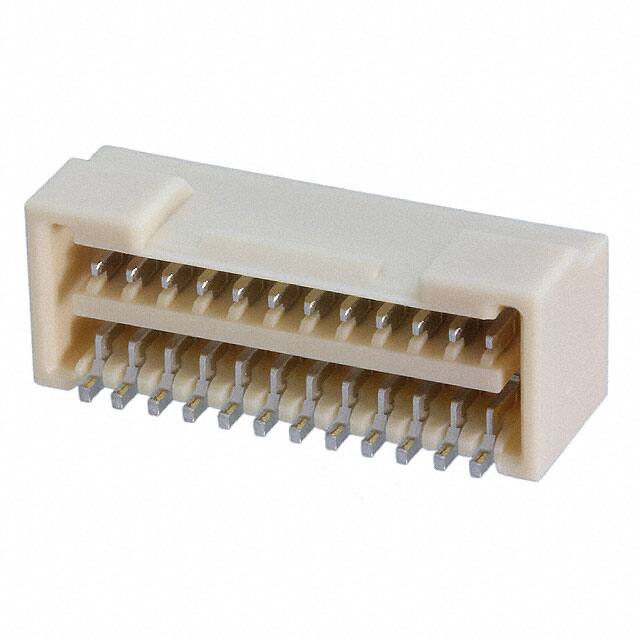

5041892470

Specifications

Terminal

Solder

Durability

30 Cycles

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Mating Contact Pitch

0.049 inch

Number Of Conductors

ONE

Body Length Or Diameter

0.705 inch

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Total Number Of Contacts

24

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Fastening Type

Latch Lock

Contact Type

Male Blade

Yayın Yılı

2014

Fabrika Tedarik Süresi

11 Weeks

Pitch Mating

0.049 1.25mm

Insulation Color

Natural

Rated Current Signal

1.5A

Contact Shape

Rectangular

Number Of Positions Loaded

All

Connector Type

Header

HTS Kodu

8536.69.40.40

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Operating Temperature Max

85°C

Insulation Height

0.241 6.13mm

Sıra Sayısı

2

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99

Seri

Micro-Lock 504189

Insulation Resistance

100000000Ohm

Contact Finish Mating

Tin

Pozisyon Sayısı

24

Material Flammability Rating

UL94 V-0
