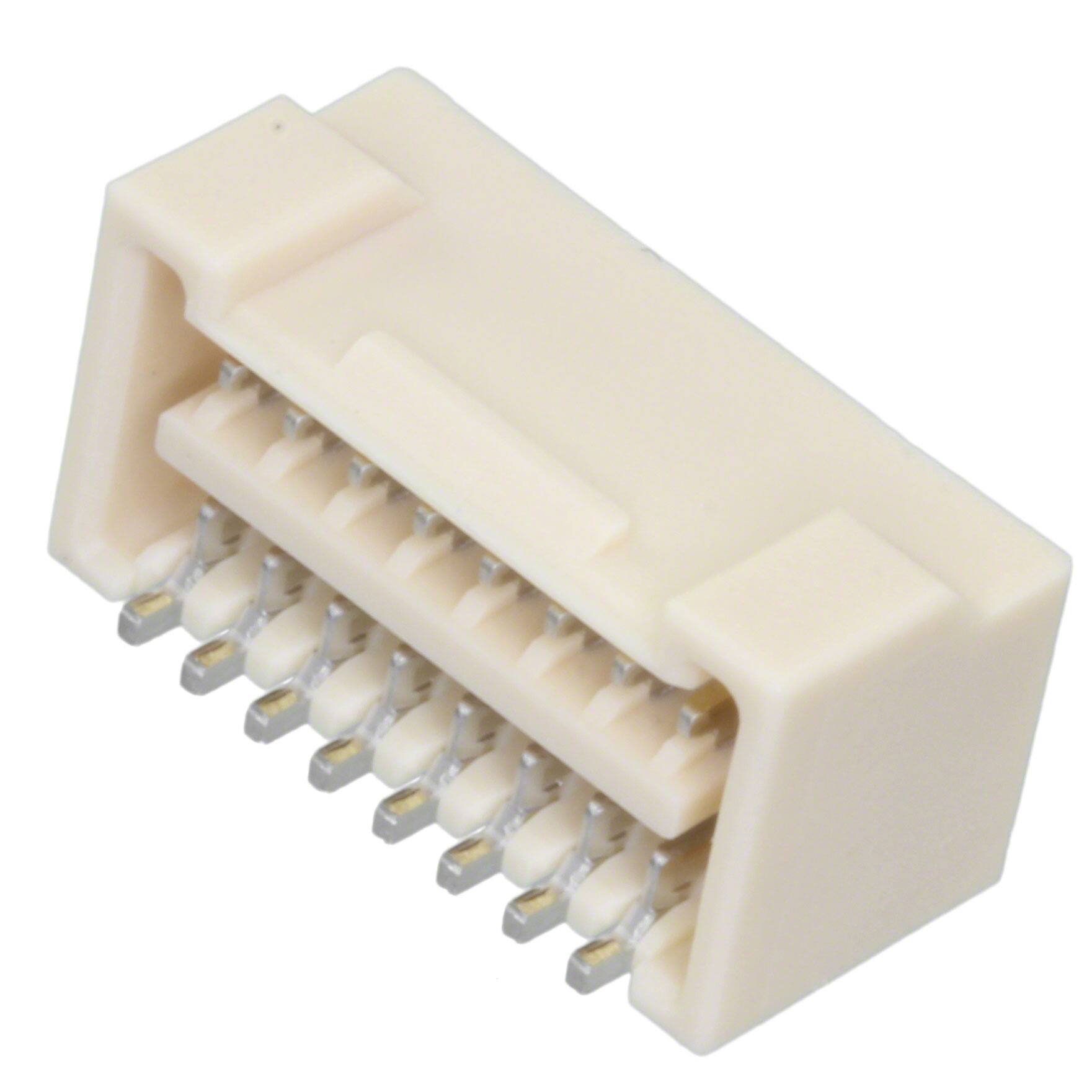

5041891670

Specifications

Contact Shape

Rectangular

Number Of Positions Loaded

All

HTS Kodu

8536.69.40.40

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Operating Temperature Max

85°C

Insulation Height

0.241 6.13mm

Sıra Sayısı

2

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99

Seri

Micro-Lock 504189

Insulation Resistance

100000000Ohm

Pozisyon Sayısı

16

Contact Finish Mating

Tin

Ambalaj

Tape & Reel (TR)

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Durability

30 Cycles

Terminal

Solder

Contact Materials

Brass

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Mating Contact Pitch

0.049 inch

Body Length Or Diameter

0.508 inch

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Total Number Of Contacts

16

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Number Of Pcb Rows

2

Yayın Yılı

2014

Contact Type

Male Blade

Fastening Type

Latch Lock

Rated Current Signal

1.5A

Insulation Color

Natural
