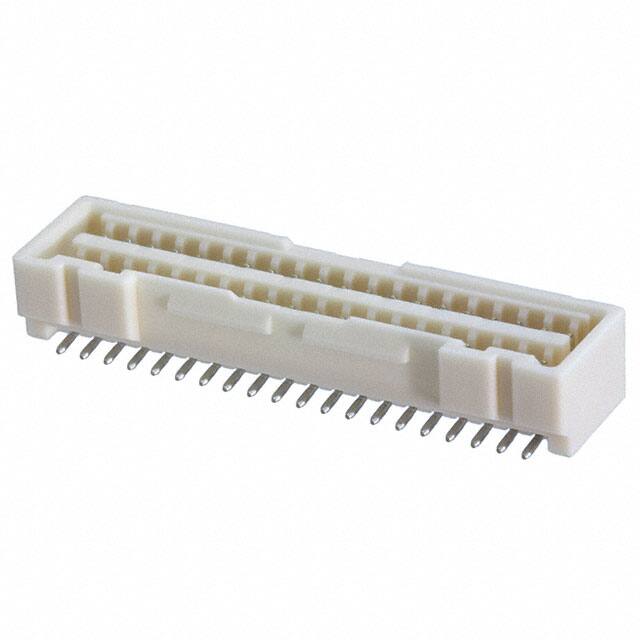

5041874070

Specifications

Pcb Contact Row Spacing

4.699 mm

Total Number Of Contacts

40

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Number Of Pcb Rows

2

Polarization Key

POLARIZED HOUSING

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Fastening Type

Latch Lock

Yayın Yılı

2014

Contact Type

Male Pin

Pitch Mating

0.049 1.25mm

Fabrika Tedarik Süresi

19 Weeks

Insulation Color

Natural

Rated Current Signal

1.5A

Stack Height Mating

7.95mm

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Terminal

Solder

Durability

30 Cycles

Body Length Or Diameter

1.098 inch

Mating Contact Pitch

0.049 inch

Number Of Conductors

ONE

Insulation Resistance

100000000Ohm

Sıra Sayısı

2

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99

Seri

Micro-Lock 504187

Reliability

COMMERCIAL

Contact Finish Mating

Tin

Pozisyon Sayısı

40

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Body Depth

0.189 inch

Contact Shape

Square

Number Of Positions Loaded

All

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall
