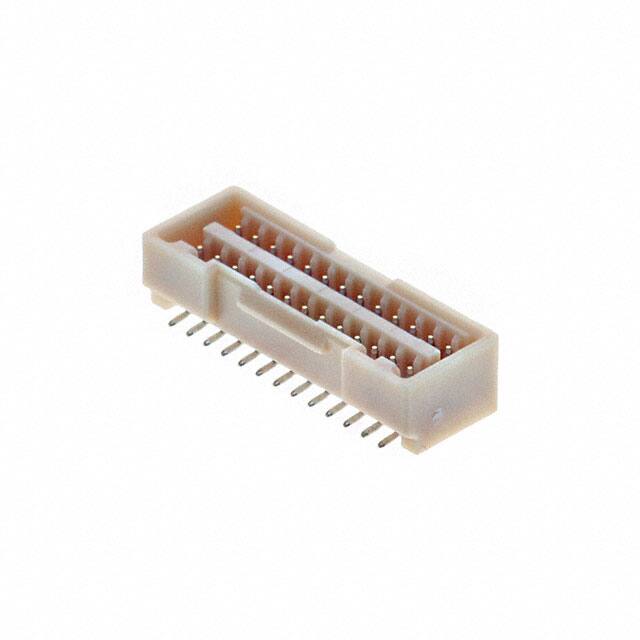

5041872670

Specifications

Glow Wire Compliant

Non-compliant

Insulation Resistance

100000000Ohm

Sıra Sayısı

2

Dielectric Withstanding Voltage

700VAC V

ECCN Kodu

EAR99

Seri

Micro-Lock 504187

Reliability

COMMERCIAL

Orientation

Vertical

Pozisyon Sayısı

26

Contact Finish Mating

Tin

Ambalaj

Tape & Reel (TR)

Body Depth

0.189 inch

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Contact Shape

Square

Number Of Positions Loaded

All

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Operating Temperature Max

85°C

Insulation Height

0.189 4.80mm

HTS Kodu

8536.69.40.40

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

Connector Type

Header

Montaj Tipi

Surface Mount

Total Number Of Contacts

26

Pcb Contact Row Spacing

4.699 mm

Montaj

Surface Mount

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

2

Pcb Contact Pattern

RECTANGULAR

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Yayın Yılı

2016

Contact Type

Male Pin

Fastening Type

Latch Lock

Rated Current Signal

1.5A

Pitch Mating

0.049 1.25mm

Fabrika Tedarik Süresi

19 Weeks

Insulation Color

Natural
