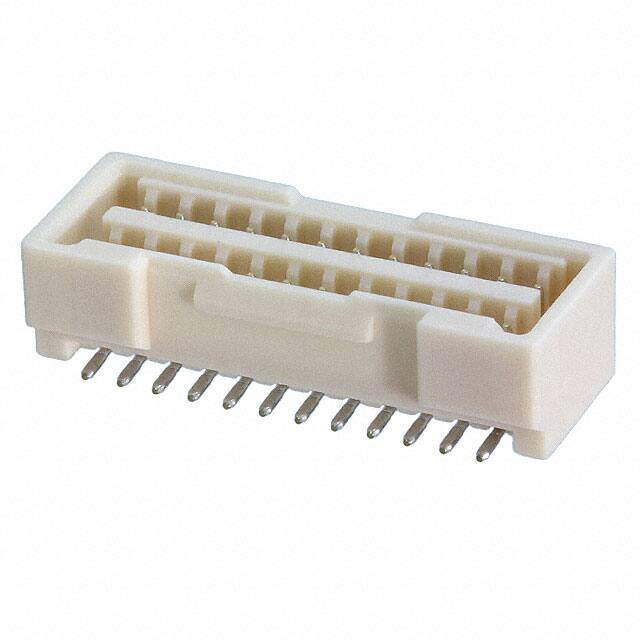

5041872470

Specifications

Insulation Resistance

100000000Ohm

ECCN Kodu

EAR99

Seri

Micro-Lock 504187

Dielectric Withstanding Voltage

700VAC V

Sıra Sayısı

2

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Ambalaj

Tape & Reel (TR)

Body Depth

0.189 inch

Contact Finish Mating

Tin

Pozisyon Sayısı

24

Number Of Positions Loaded

All

Contact Shape

Square

Insulation Height

0.189 4.80mm

Operating Temperature Max

85°C

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Montaj Tipi

Surface Mount

Connector Type

Header

Insulation Materials

Polyamide (PA), Nylon, Glass Filled

HTS Kodu

8536.69.40.40

Number Of Pcb Rows

2

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Pcb Contact Row Spacing

4.699 mm

Total Number Of Contacts

24

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Natural

Fabrika Tedarik Süresi

19 Weeks

Pitch Mating

0.049 1.25mm

Rated Current Signal

1.5A

Fastening Type

Latch Lock

Contact Type

Male Pin

Yayın Yılı

2014

Stack Height Mating

7.95mm

RoHS Durumu

ROHS3 Compliant
