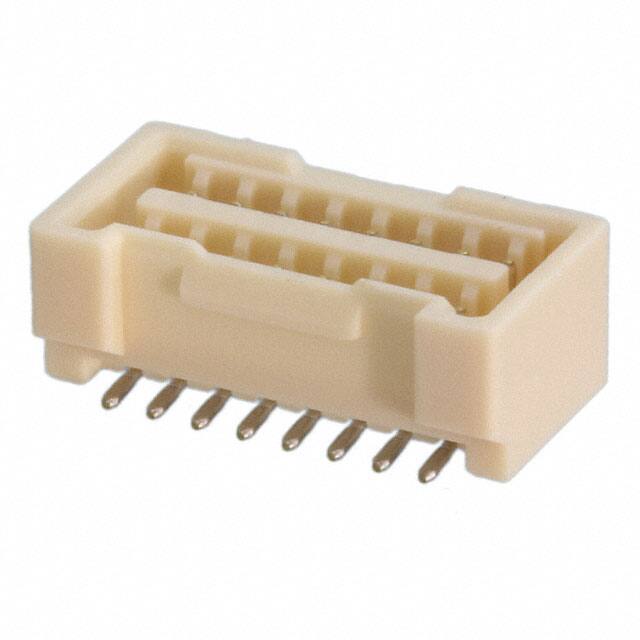

5041871670

Specifications

Polarization Key

POLARIZED HOUSING

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Pcb Contact Row Spacing

4.699 mm

Total Number Of Contacts

16

Number Of Pcb Rows

2

Contact Finish Thickness Mating

39.4μin 1.00μm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Stack Height Mating

7.95mm

Fastening Type

Latch Lock

Contact Type

Male Pin

Yayın Yılı

2014

Insulation Color

Natural

Fabrika Tedarik Süresi

19 Weeks

Pitch Mating

0.049 1.25mm

Rated Current Signal

1.5A

Terminal

Solder

Durability

30 Cycles

RoHS Durumu

ROHS3 Compliant

Contact Materials

Brass

Mating Contact Pitch

0.049 inch

Number Of Conductors

ONE

Body Length Or Diameter

0.508 inch

Sıra Sayısı

2

Seri

Micro-Lock 504187

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

700VAC V

Insulation Resistance

100000000Ohm

Contact Finish Mating

Tin

Pozisyon Sayısı

16

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Body Depth

0.189 inch

Ambalaj

Tape & Reel (TR)

Reliability

COMMERCIAL

Contact Shape

Square

Number Of Positions Loaded

All

Connector Type

Header

HTS Kodu

8536.69.40.40
