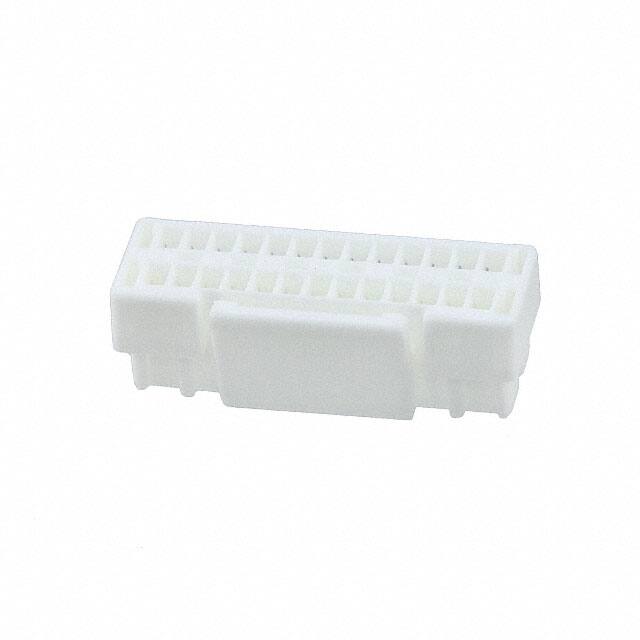

5041862600

Specifications

Rated Current Signal

1.5A

Contact Termination

Crimp

Insulation Diametermin

0.031 inch

Fabrika Tedarik Süresi

11 Weeks

Yayın Yılı

2014

Contact Type

Non-Gendered

Fastening Type

Latch Holder

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Note

Contacts Not Included

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mounting Option1

LOCKING

Total Number Of Contacts

26

Body Length Or Diameter

0.738 inch

Durability

30 Cycles

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tray

Pozisyon Sayısı

26

Reliability

COMMERCIAL

Seri

Micro-Lock 504186

Dielectric Withstanding Voltage

700VAC V

Sıra Sayısı

2

Insulation Resistance

100000000Ohm

Kurşunsuz Kodu

yes

Renk

Natural

Montaj Tipi

Free Hanging (In-Line)

Connector Type

Receptacle

Contact Gender

FEMALE

Operating Temperature Max

85°C

Parça Durumu

Active

Pitch

0.049 1.25mm

Wire Size Min

30 AWG
