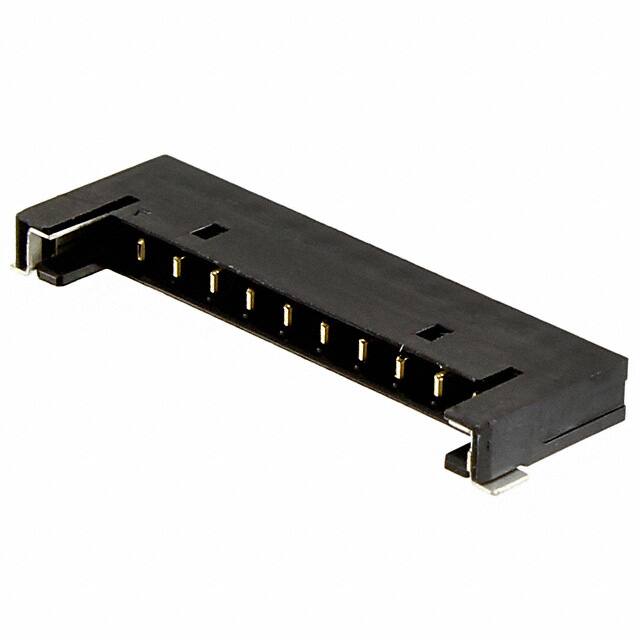

5040501091

Specifications

Fastening Type

Detent Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.059 1.50mm

Number Of Positions Loaded

All

Contact Finish Mating

Gold

ECCN Kodu

EAR99

Uzunluk

19.55mm

Style

Board to Cable/Wire

Filter Feature

NO

Ambalaj

Tape & Reel (TR)

Insulation Height

0.079 2.00mm

Contact Type

Male Blade

Contact Gender

Male

Terminal

Solder

Current Rating Amps

Varies by WireGAuge

Glow Wire Compliant

Non-compliant

Number Of Contacts

10

Ul Flammability Code

94V-0

Contact Shape

Rectangular

Connector Type

Header

Seri

Pico-Lock 504050

Contact Finish Thickness Mating

3.94μin 0.100μm

RoHS Durumu

ROHS3 Compliant

Mil Conformance

NO

Yayın Yılı

2015

Parça Durumu

Active

Applications

Automotive, General Purpose, Industrial, Lighting, Telecommunications

Çalışma Sıcaklığı

-40°C~105°C

Housing Material

Thermoplastic

Montaj Tipi

Surface Mount, Right Angle

Housing Color

Black

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Orientation

Right Angle

Montaj

Surface Mount

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Shrouding

Shrouded - 4 Wall

Halogen Free

Low Halogen

Flammability Rating

UL94 V-0

Sıra Sayısı

1
