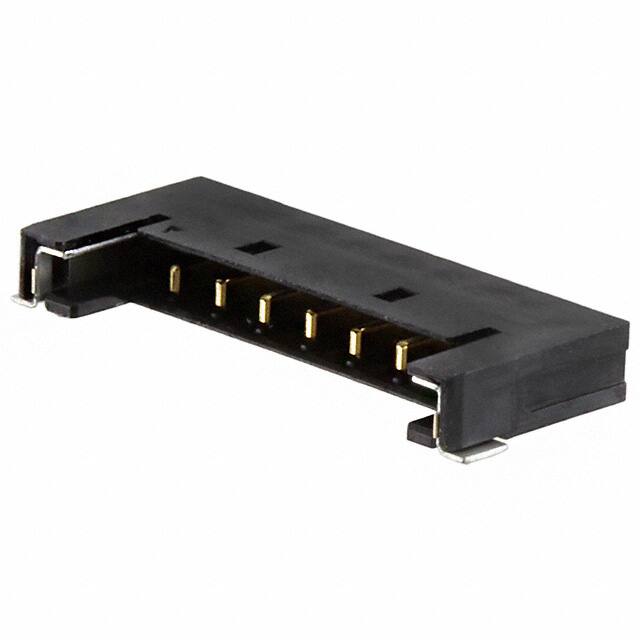

5040500791

Specifications

Polarization Key

POLARIZED HOUSING

Number Of Conductors

ONE

Connector Type

Header

Seri

Pico-Lock 504050

Contact Shape

Rectangular

Mating Contact Pitch

0.059 inch

HTS Kodu

8536.69.40.40

Current Rating Amps

Varies by WireGAuge

Terminal

Solder

Contact Gender

FEMALE

Insulation Materials

Polyamide (PA), Nylon

Nominal Gerilim

150V

Contact Type

Male Blade

Reference Standard

UL

Parça Durumu

Active

Yayın Yılı

2012

Mounting Option1

LOCKING

Özellikler

Solder Retention

RoHS Durumu

ROHS3 Compliant

Contact Materials

Copper Alloy

Reliability

COMMERCIAL

Contact Resistance

20mOhm

Body Depth

0.24 inch

Insulation Color

Black

Contact Finish Thickness Mating

3.94μin 0.100μm

Fabrika Tedarik Süresi

13 Weeks

Number Of Pcb Rows

1

Contact Finish Mating

Gold

ECCN Kodu

EAR99

Montaj Tipi

Surface Mount, Right Angle

Number Of Positions Loaded

All

Pozisyon Sayısı

7

Pitch Mating

0.059 1.50mm

Çalışma Sıcaklığı

-40°C~105°C

Fastening Type

Detent Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

Automotive, General Purpose, Industrial, Lighting, Telecommunications

Insulation Height

0.079 2.00mm

Ambalaj

Cut Tape (CT)

Sıra Sayısı

1
