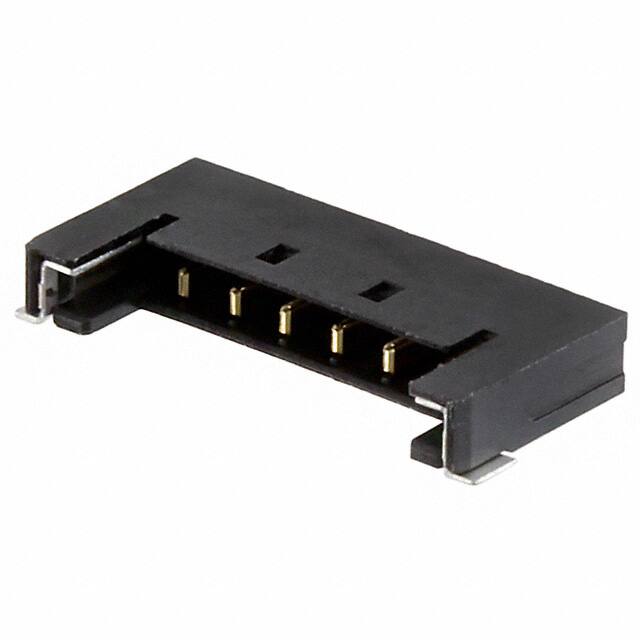

5040500691

Specifications

Contact Materials

Copper Alloy

Özellikler

Solder Retention

Reliability

COMMERCIAL

Contact Resistance

20mOhm

Body Breadth

0.079 inch

Reach Svhc

Unknown

Number Of Pcb Rows

1

Fabrika Tedarik Süresi

13 Weeks

Polarization Key

POLARIZED HOUSING

Number Of Conductors

ONE

Depth

6.44mm

Mating Contact Pitch

0.059 inch

Akım Değeri

3A

Insulation Materials

Polyamide (PA), Nylon

Nominal Gerilim

150V

Reference Standard

UL

Sıra Sayısı

1

Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Halogen Free

Low Halogen

Montaj

Surface Mount

Material Flammability Rating

UL94 V-0

Orientation

Right Angle

Radyasyon Dayanımı

No

Montaj Tipi

Surface Mount, Right Angle

Housing Color

Black

Çalışma Sıcaklığı

-40°C~105°C

Housing Material

Thermoplastic

Applications

Automotive, General Purpose, Industrial, Lighting, Telecommunications

Yükseklik

2.15mm

Parça Durumu

Active

Yayın Yılı

2012

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

3.94μin 0.100μm

Connector Type

Header

Seri

Pico-Lock 504050

Number Of Contacts

6

Contact Shape

Rectangular

Terminal

Solder

Current Rating Amps

Varies by WireGAuge
