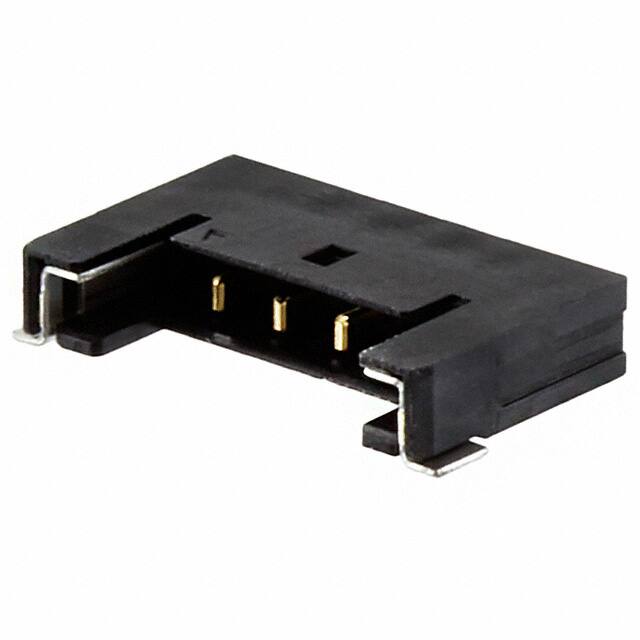

5040500491

Specifications

Çalışma Sıcaklığı

-40°C~105°C

Housing Material

Thermoplastic

Applications

Automotive, General Purpose, Industrial, Lighting, Telecommunications

Montaj Tipi

Surface Mount, Right Angle

Housing Color

Black

Montaj

Surface Mount

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating

UL94 V-0

Orientation

Right Angle

Din Conformance

NO

Sıra Sayısı

1

Shrouding

Shrouded - 4 Wall

Halogen Free

Low Halogen

Mixed Contacts

NO

Insulation Materials

Polyamide (PA), Nylon

Nominal Gerilim

150V

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Depth

2mm

Number Of Conductors

ONE

Mating Contact Pitch

0.059 inch

Akım Değeri

3A

Body Breadth

0.079 inch

Reach Svhc

Unknown

Number Of Pcb Rows

1

Iec Conformance

NO

Fabrika Tedarik Süresi

13 Weeks

Contact Materials

Copper Alloy

Özellikler

Solder Retention

Reliability

COMMERCIAL

Contact Resistance

20mOhm

Pitch Mating

0.059 1.50mm

Fastening Type

Detent Lock

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Style

Board to Cable/Wire

Weight

126.63732mg

Uzunluk

10.55mm
