Specifications
- Montaj Tipi
- Surface Mount
- Kurşunsuz Kodu
- yes
- Pozisyon Sayısı
- 24
- Insulator Color
- BLACK
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Board Mounting Option
- SOLDER HOLDING POSTS
- Sıra Sayısı
- 2
- Ambalaj
- Tape & Reel (TR)
- Operating Temperature Max
- 85°C
- Filter Feature
- NO
- Stack Height Mating
- 0.8mm
- Height Above Board
- 0.027 0.68mm
- Total Number Of Contacts
- 24
- Din Conformance
- NO
- Polarization Key
- POLARIZED HOUSING
- Contact Pattern
- RECTANGULAR
- Number Of Conductors
- ONE

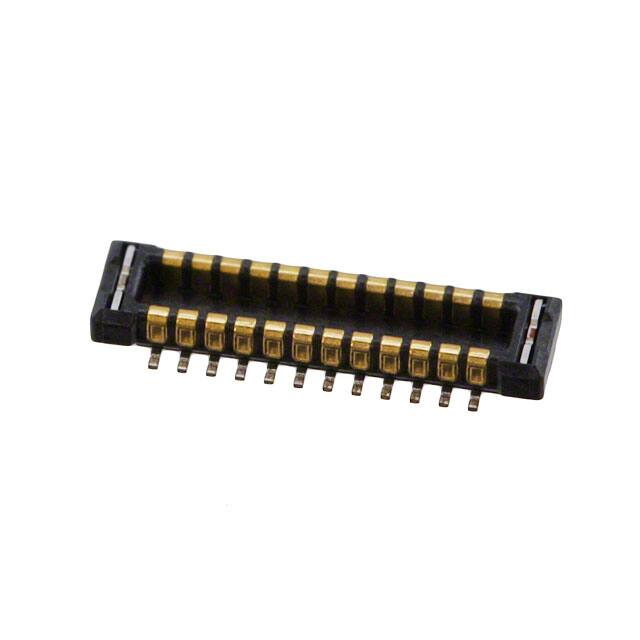

- Connector Type
- Plug, Center Strip Contacts
- Seri
- SlimStack 503776
- Mixed Contacts
- NO
- Pitch
- 0.016 0.40mm
- Insulation Materials
- LIQUID CRYSTAL POLYMER (LCP)
- Durability
- 30 Cycles
- Contact Gender
- MALE
- Contact Style
- BELLOWED TYPE
- Option
- GENERAL PURPOSE
- Operating Temperature Min
- -40°C
- Reference Standard
- UL
- Mil Conformance
- NO
- Mounting Option1
- LOCKING
- Parça Durumu
- Obsolete
- Yayın Yılı
- 2013
- Rated Current Signal
- 0.3A
- RoHS Durumu
- ROHS3 Compliant
- Contact Materials
- NOT SPECIFIED
- Özellikler
- Solder Retention
- Reliability
- COMMERCIAL
- Insulation Resistance
- 100000000Ohm
- Contact Resistance
- 80mOhm
- Body Breadth
- 0.065 inch
