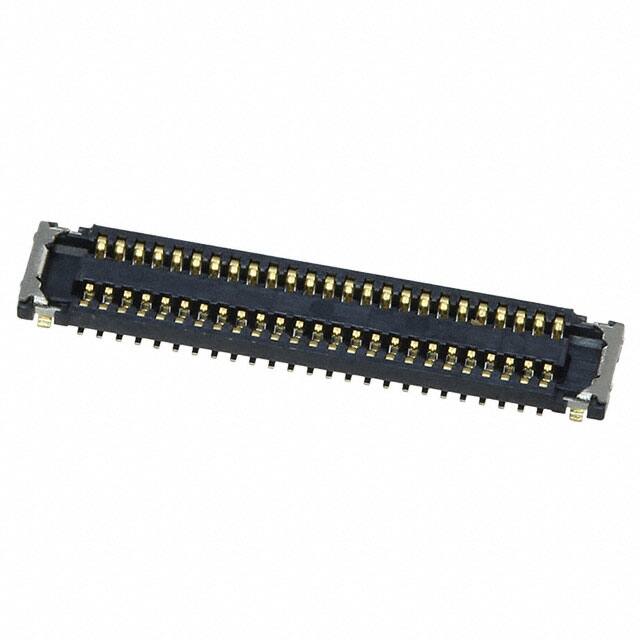

5037725010

Specifications

Body Breadth

0.098 inch

Pcb Contact Pattern

RECTANGULAR

Contact Finish

Gold

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

11 Weeks

Mounting Option1

LOCKING

Yayın Yılı

2014

Parça Durumu

Obsolete

Rated Current Signal

0.3A

RoHS Durumu

ROHS3 Compliant

Contact Materials

NOT SPECIFIED

Özellikler

Solder Retention

Reliability

COMMERCIAL

Body Length Or Diameter

0.488 inch

Insulation Resistance

100000000Ohm

Contact Resistance

80mOhm

Pcb Contact Row Spacing

1.143 mm

Durability

30 Cycles

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Pitch

0.016 0.40mm

Contact Style

BELLOWED TYPE

Reference Standard

UL

Operating Temperature Min

-40°C

Polarization Key

POLARIZED HOUSING

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Connector Type

Receptacle, Outer Shroud Contacts

Seri

SlimStack 503772

Operating Temperature Max

85°C

Ambalaj

Tape & Reel (TR)

Sıra Sayısı

2

Height Above Board

0.026 0.65mm

Stack Height Mating

0.8mm

Total Number Of Contacts

60

Pozisyon Sayısı

50

Insulator Color

BLACK

Nem Hassasiyeti (MSL)

1 (Unlimited)

Board Mounting Option

SOLDER HOLDING POSTS

Montaj Tipi

Surface Mount
