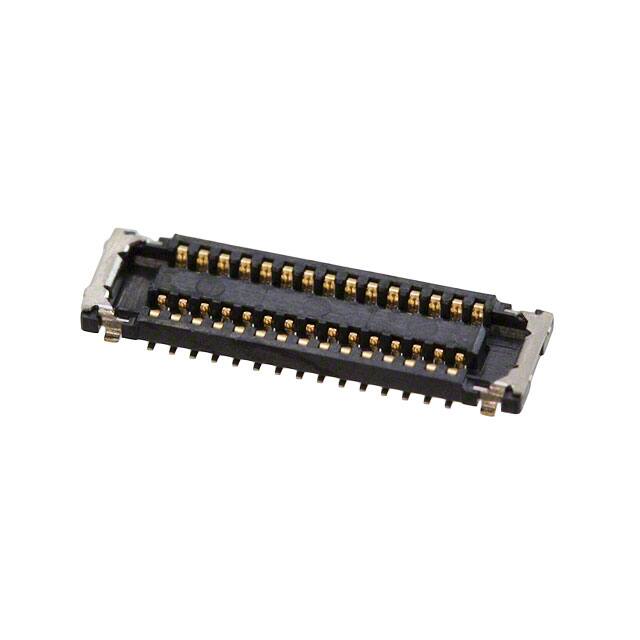

5037723010

Specifications

Body Breadth

0.098 inch

Pcb Contact Pattern

RECTANGULAR

Contact Finish

Gold

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

7 Weeks

Iec Conformance

NO

Mounting Option1

LOCKING

Mil Conformance

NO

Yayın Yılı

2013

Parça Durumu

Obsolete

Contact Materials

NOT SPECIFIED

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

0.3A

Özellikler

Solder Retention

Reliability

COMMERCIAL

Insulation Resistance

100000000Ohm

Body Length Or Diameter

0.331 inch

Contact Resistance

80mOhm

Mixed Contacts

NO

Pcb Contact Row Spacing

1.143 mm

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Pitch

0.016 0.40mm

Contact Gender

FEMALE

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Operating Temperature Min

-40°C

Reference Standard

UL

Contact Pattern

RECTANGULAR

Polarization Key

POLARIZED HOUSING

Number Of Conductors

ONE

Seri

SlimStack 503772

Connector Type

Receptacle, Outer Shroud Contacts

Din Conformance

NO

Operating Temperature Max

85°C

Ambalaj

Tape & Reel (TR)

Sıra Sayısı

2

Filter Feature

NO

Height Above Board

0.026 0.65mm

Stack Height Mating

0.8mm

Total Number Of Contacts

30
