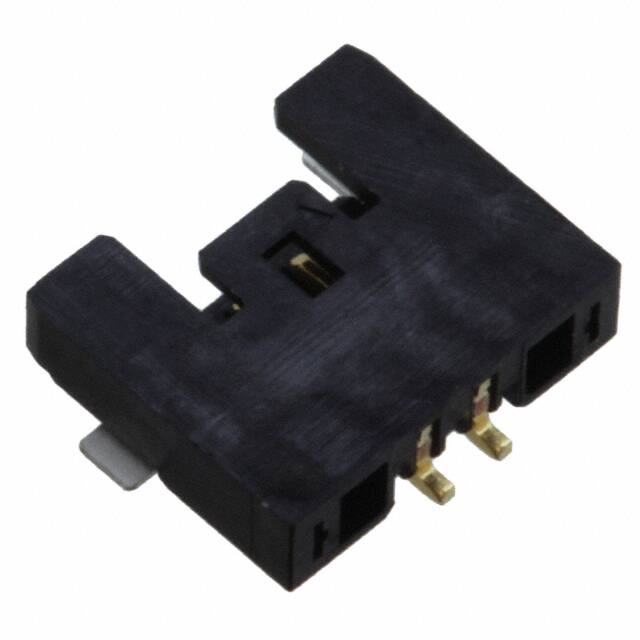

5037630291

Specifications

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Mating

3.94μin 0.100μm

Insulation Color

Black

RoHS Durumu

ROHS3 Compliant

Mounting Option1

LOCKING

Mil Conformance

NO

Parça Durumu

Active

Yayın Yılı

2013

Terminal

Solder

Current Rating Amps

Varies by WireGAuge

Contact Type

Male Pin

Seri

Pico-Lock 503763

Connector Type

Header

Ul Flammability Code

94V-0

Contact Shape

Square

Style

Board to Cable/Wire

Filter Feature

NO

Ambalaj

Tape & Reel (TR)

Insulation Height

0.059 1.50mm

Total Number Of Contacts

2

Pitch Mating

0.039 1.00mm

Pozisyon Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Detent Lock

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Body Breadth

0.059 inch

Number Of Pcb Rows

1

Fabrika Tedarik Süresi

11 Weeks

Iec Conformance

NO

Contact Materials

Copper Alloy

Özellikler

Solder Retention

Reliability

COMMERCIAL

Durability

30 Cycles

Insulation Materials

Polyamide (PA), Nylon

Mixed Contacts

NO

Reference Standard

UL

Nominal Gerilim

150V

Number Of Conductors

ONE
