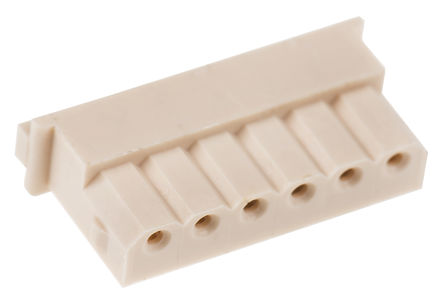

50-37-5063

Specifications

Genişlik

8mm

Pitch

2.5mm

Montaj

Cable, Free Hanging, PCB

Total Number Of Contacts

6

Voltage Rated Ac

250V

Yayın Yılı

2006

Shrouding

Yes

Flammability Rating

UL94 V-0

Halogen Free

Low Halogen

Voltage Working

250V

Kurşunsuz

Lead Free

Reach Svhc

Unknown

Maks. Çalışma Sıcaklığı

105°C

ECCN Kodu

EAR99

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Connector Type

Power, Receptacle, Rectangular, Socket

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Min. Çalışma Sıcaklığı

-40°C

Filter Feature

NO

Glow Wire Compliant

Non-compliant

Akım Değeri

3A

Iec Conformance

NO

Housing Material

Nylon

Contact Gender

Female

RoHS Durumu

RoHS Compliant

Gender

Receptacle

Ambalaj

Bulk

Material

Nylon, Polyamide

Ul Flammability Code

94V-0

Additional Feature

POLARIZED

Fastening Type

Ramp

Insulation Resistance

1GOhm

Depth

3.9mm

Orientation

Straight

Uzunluk

17.4mm

Din Conformance

NO

Voltage Rated Dc

250V

Mil Conformance

NO

Kurşunsuz Kodu

yes
