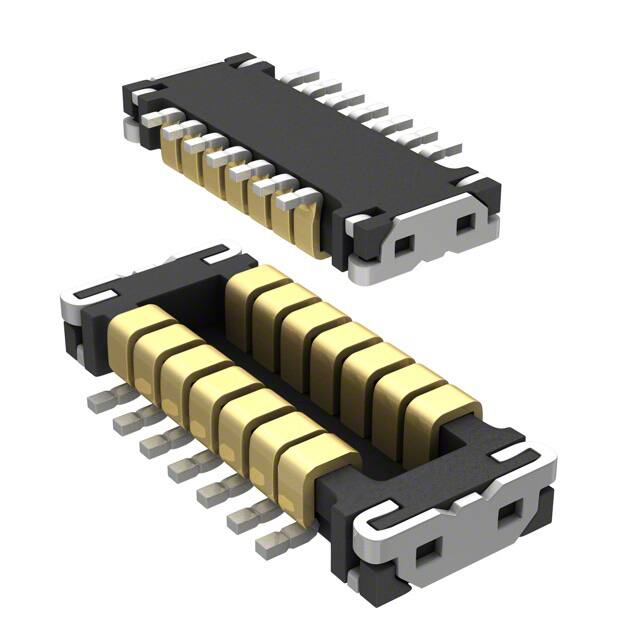

5035521420

Specifications

Kurşunsuz Kodu

yes

Montaj Tipi

Surface Mount

Board Mounting Option

FITTING NAIL

Sıra Sayısı

2

Operating Temperature Max

85°C

Stack Height Mating

0.7mm

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Polarization Key

POLARIZED HOUSING

Number Of Conductors

ONE

Reference Standard

UL

Mixed Contacts

NO

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Durability

30 Cycles

Insulation Resistance

100000000Ohm

Reliability

COMMERCIAL

Contact Resistance

80mOhm

Özellikler

Solder Retention

Contact Materials

COPPER ALLOY

Contact Finish

Gold

Iec Conformance

NO

Fabrika Tedarik Süresi

8 Weeks

Number Of Pcb Rows

2

Body Breadth

0.066 inch

Dielectric Withstanding Voltage

350VDC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

14

Insulator Color

BLACK

Total Number Of Contacts

14

Ambalaj

Tape & Reel (TR)

Height Above Board

0.022 0.57mm

Filter Feature

NO

Contact Pattern

RECTANGULAR

Seri

SlimStack 503552

Connector Type

Plug, Outer Shroud Contacts

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Operating Temperature Min

-40°C

Contact Gender

MALE

Pitch

0.016 0.40mm
