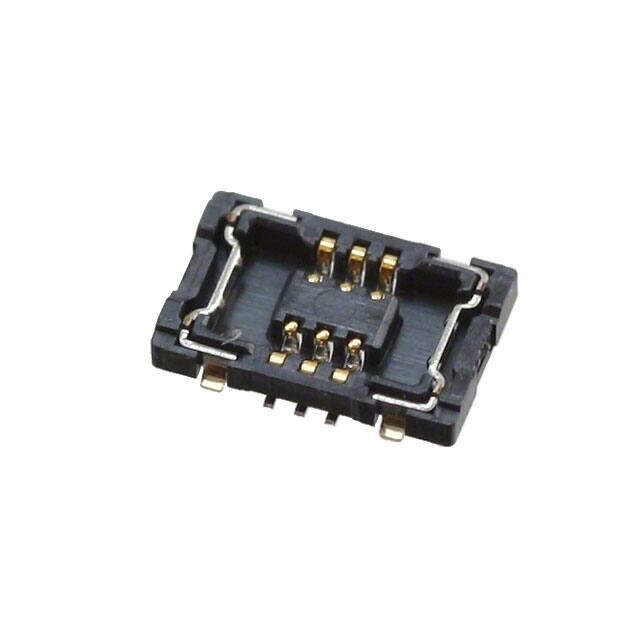

5035480620

Specifications

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

8 Weeks

Iec Conformance

NO

Contact Finish

Gold

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Contact Resistance

80mOhm

Reliability

COMMERCIAL

Insulation Resistance

100000000Ohm

Body Length Or Diameter

0.153 inch

Rated Current Signal

0.3A

RoHS Durumu

ROHS3 Compliant

Contact Materials

COPPER ALLOY

Özellikler

Solder Retention

Mil Conformance

NO

Mounting Option1

LOCKING

Parça Durumu

Obsolete

Yayın Yılı

2013

Reference Standard

UL

Operating Temperature Min

-40°C

Option

GENERAL PURPOSE

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Pitch

0.016 0.40mm

Contact Gender

FEMALE

Mixed Contacts

NO

Number Of Conductors

ONE

Connector Type

Receptacle, Center Strip Contacts

Seri

SlimStack 503548

Contact Pattern

RECTANGULAR

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Total Number Of Contacts

6

Filter Feature

NO

Stack Height Mating

0.7mm

Height Above Board

0.027 0.68mm

Operating Temperature Max

85°C

Ambalaj

Tape & Reel (TR)

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulator Color

BLACK
