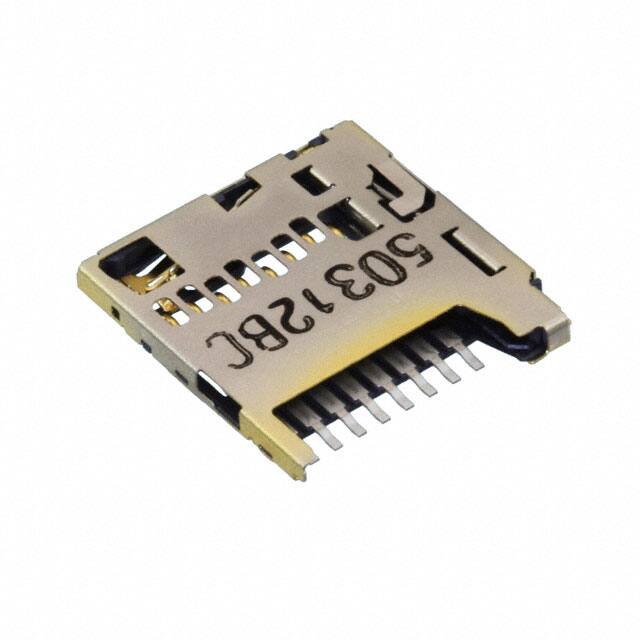

5033981892

Specifications

Yayın Yılı

2014

Seri

503398

Contact Finish

Gold

Terminal Adımı

1.0922mm

Dielectric Withstanding Voltage

500VAC V

Din Conformance

NO

Mil Conformance

NO

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Sıra Sayısı

1

Insertion Removal Method

Push In, Push Out

Pcb Contact Pattern

RECTANGULAR

Connector Type

Connector and Ejector

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

16 Weeks

Mating Contact Pitch

0.043 inch

Insulator Color

BLACK

Number Of Pcb Rows

1

Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Height Above Board

0.050 1.28mm

Reliability

COMMERCIAL

Contact Materials

NOT SPECIFIED

Insulation Materials

GLASS FILLED LIQUID CRYSTAL POLYMER

Plating Thickness

20μin

Card Type

microSD™

Body Breadth

0.05 inch

Operating Temperature Max

85°C

Mounting Feature

Normal, Standard - Top

Total Number Of Contacts

8

Kurşunsuz Kodu

yes

Contact Resistance

100mOhm

Montaj Tipi

Surface Mount, Right Angle

Number Of Conductors

ONE

Number Of Ports

1

Bodyshell Style

RECEPTACLE

Contact Finish Thickness

19.7μin 0.50μm

Pozisyon Sayısı

9 (8 + 1)

Body Depth

0.553 inch

Ambalaj

Tape & Reel (TR)
