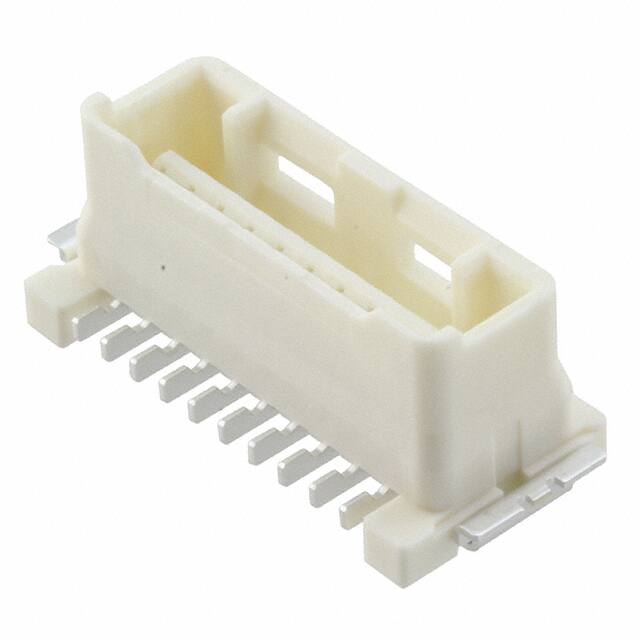

5033951010

Specifications

Montaj Tipi

Surface Mount

Yayın Yılı

2016

Contact Resistance

20mOhm

Seri

CLIK-Mate 503395

Çalışma Sıcaklığı

-40°C~105°C

Contact Finish Mating

Tin

Number Of Conductors

ONE

Mounting Option1

LOCKING

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Terminal

Solder

Fastening Type

Latch Holder

Sıra Sayısı

1

Fabrika Tedarik Süresi

4 Weeks

Connector Type

Receptacle

HTS Kodu

8536.69.40.40

Mating Contact Pitch

0.059 inch

Pozisyon Sayısı

10

Ambalaj

Tape & Reel (TR)

Özellikler

Solder Retention

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Durability

30 Cycles

Contact Materials

Copper Alloy

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Type

Forked

Insulation Materials

Polyamide (PA46), Nylon 4/6

Parça Durumu

Active

Insulation Resistance

500000000Ohm

Pitch Mating

0.059 1.50mm

Insulation Height

0.350 8.89mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

39.4μin 1.00μm

ECCN Kodu

EAR99

Rated Current Signal

2A

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Total Number Of Contacts

10

Insulation Color

Beige
