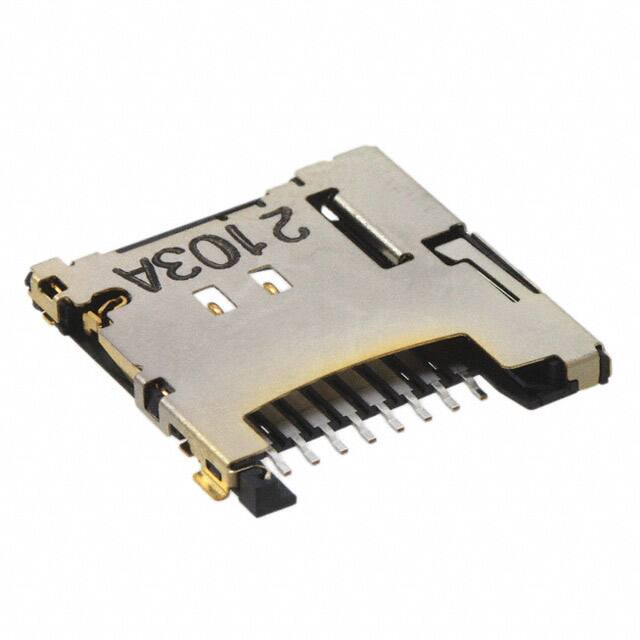

5031820852

Specifications

Mating Contact Pitch

0.043 inch

JESD-609 Kodu

e3

Ambalaj

Tape & Reel (TR)

Body Depth

0.589 inch

Contact Pattern

RECTANGULAR

Pozisyon Sayısı

10 (8 + 2)

Number Of Pcb Rows

1

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Insertion Removal Method

Push In, Push Out

HTS Kodu

8536.69.40.40

Number Of Ports

1

Connector Type

Connector and Ejector

Bodyshell Style

RECEPTACLE

Number Of Conductors

ONE

Seri

503182

Contact Resistance

100mOhm

Yayın Yılı

2013

Ejector Side

Right

Terminal Adımı

1.0922mm

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Dielectric Withstanding Voltage

500VAC V

Mounting Feature

Normal, Standard - Top

Kurşunsuz Kodu

yes

Total Number Of Contacts

8

Body Length Or Diameter

0.588 inch

Contact Gender

MALE

Operating Temperature Min

-25°C

RoHS Durumu

ROHS3 Compliant

Operating Temperature Max

85°C

Body Breadth

0.057 inch

Card Type

Secure Digital - microSD™

Rated Current Signal

0.5A

ECCN Kodu

EAR99

Height Above Board

0.057 1.45mm

Contact Materials

NOT SPECIFIED

Reliability

COMMERCIAL

Insulation Resistance

1000000000Ohm

Parça Durumu

Obsolete
