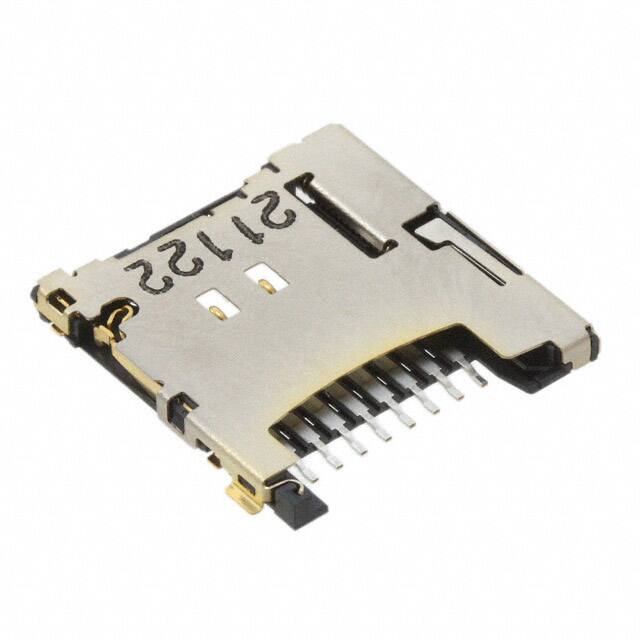

5031820832

Specifications

Dielectric Withstanding Voltage

500VAC V

Din Conformance

NO

Yayın Yılı

2014

Seri

503182

Contact Resistance

100mOhm

Contact Finish

Gold

Terminal Adımı

1.0922mm

Montaj Tipi

Surface Mount, Right Angle

Number Of Conductors

ONE

Mil Conformance

NO

Connector Type

Connector and Ejector

Number Of Ports

1

Bodyshell Style

SOCKET

Option

GENERAL PURPOSE

Sıra Sayısı

1

Insertion Removal Method

Push In, Push Out

Pcb Contact Pattern

RECTANGULAR

Contact Pattern

RECTANGULAR

Body Depth

0.589 inch

Pozisyon Sayısı

10 (8 + 2)

Number Of Pcb Rows

1

Ambalaj

Tape & Reel (TR)

Mating Contact Pitch

0.043 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Özellikler

Switch

Insulation Resistance

1000000000Ohm

Parça Durumu

Obsolete

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Height Above Board

0.057 1.45mm

Reliability

COMMERCIAL

Contact Materials

NOT SPECIFIED

Durability

10000 Cycles

Body Breadth

0.057 inch

Card Type

Secure Digital - microSD™

Operating Temperature Max

85°C

Rated Current Signal

0.5A

Operating Temperature Min

-25°C

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant
