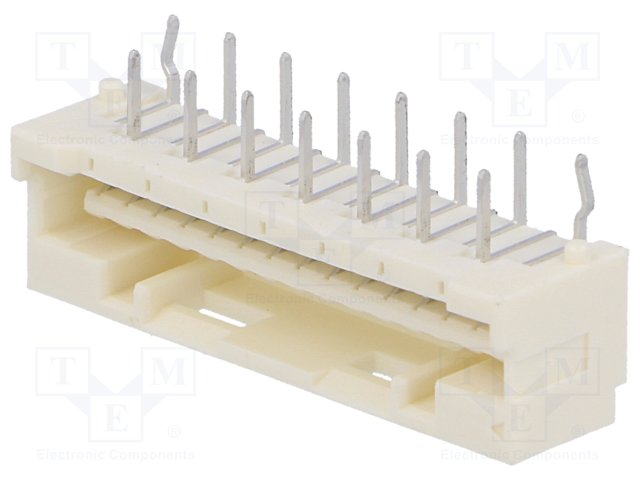

5031751500

Specifications

Contact Resistance

20mOhm

Montaj Tipi

Through Hole, Right Angle

Orientation

Right Angle

Number Of Conductors

ONE

Glow Wire Compliant

Non-compliant

Pcb Contact Row Spacing

3.7084 mm

Fastening Type

Latch Holder

Mixed Contacts

NO

Body Depth

0.285 inch

Montaj

Through Hole

Ambalaj

Tray

Özellikler

Board Guide

Ul Flammability Code

94V-0

Reference Standard

UL

Durability

30 Cycles

Parça Durumu

Active

Insulation Resistance

500000000Ohm

Contact Length Post

0.134 3.40mm

Iec Conformance

NO

Pitch Mating

0.059 1.50mm

Insulation Height

0.274 6.95mm

RoHS Durumu

ROHS3 Compliant

Rated Current Signal

2A

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Contact Gender

FEMALE

Yayın Yılı

2010

Seri

CLIK-Mate 503175

Çalışma Sıcaklığı

-40°C~105°C

Dielectric Withstanding Voltage

700VAC V

Din Conformance

NO

Contact Finish Mating

Tin

Mil Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Sıra Sayısı

1

Number Of Contacts

15

Terminal

Kinked Pin, Solder

Pcb Contact Pattern

STAGGERED
