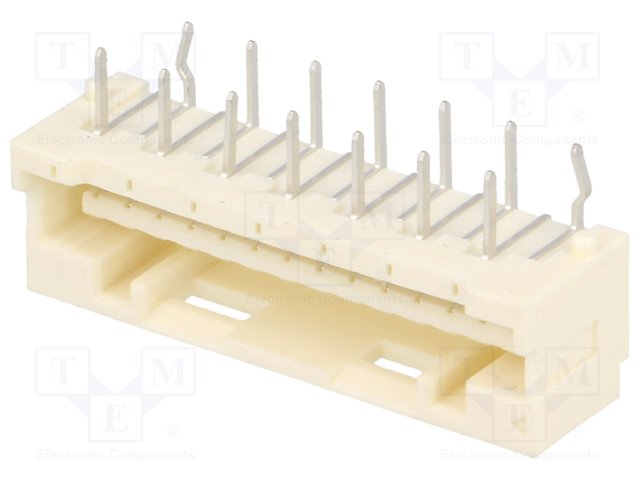

5031751400

Specifications

Contact Resistance

20mOhm

Orientation

Right Angle

Montaj Tipi

Through Hole, Right Angle

Number Of Conductors

ONE

Glow Wire Compliant

Non-compliant

Pcb Contact Row Spacing

3.7084 mm

Fastening Type

Latch Holder

Mixed Contacts

NO

Body Depth

0.285 inch

Ambalaj

Tray

Montaj

Through Hole

Özellikler

Board Guide

Ul Flammability Code

94V-0

Reference Standard

UL

Durability

30 Cycles

Insulation Resistance

500000000Ohm

Parça Durumu

Active

Contact Length Post

0.134 3.40mm

Iec Conformance

NO

Pitch Mating

0.059 1.50mm

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.274 6.95mm

Rated Current Signal

2A

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Contact Gender

Female

Yayın Yılı

2010

Seri

CLIK-Mate 503175

Çalışma Sıcaklığı

-40°C~105°C

Dielectric Withstanding Voltage

700VAC V

Din Conformance

NO

Housing Material

Polyamide

Contact Finish Mating

Tin

Mil Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Number Of Contacts

14

Sıra Sayısı

1

Terminal

Kinked Pin, Solder
