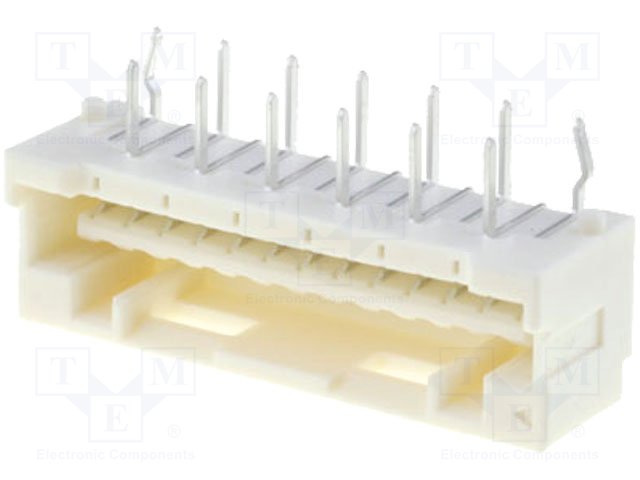

5031751300

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Type

Forked

Contact Finish Thickness Post

39.4μin 1.00μm

Reliability

COMMERCIAL

Contact Materials

Copper Alloy

Insulation Materials

Polyamide (PA), Nylon

Akım Değeri

2A

Nominal Gerilim

100V

Contact Finish Thickness Mating

39.4μin 1.00μm

Plating Thickness

39μin

Body Breadth

0.274 inch

Insulation Color

Beige

Reach Svhc

No SVHC

Kurşunsuz Kodu

yes

Yayın Yılı

2010

Seri

CLIK-Mate 503175

Çalışma Sıcaklığı

-40°C~105°C

Dielectric Withstanding Voltage

700VAC V

Din Conformance

NO

Contact Finish Mating

Tin

Mil Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Sıra Sayısı

1

Number Of Contacts

13

Terminal

Kinked Pin, Solder

Pcb Contact Pattern

STAGGERED

Connector Type

Receptacle

Fabrika Tedarik Süresi

15 Weeks

JESD-609 Kodu

e3

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

2

Özellikler

Board Guide

Ul Flammability Code

94V-0

Reference Standard

UL

Durability

30 Cycles

Insulation Resistance

500000000Ohm

Parça Durumu

Active
