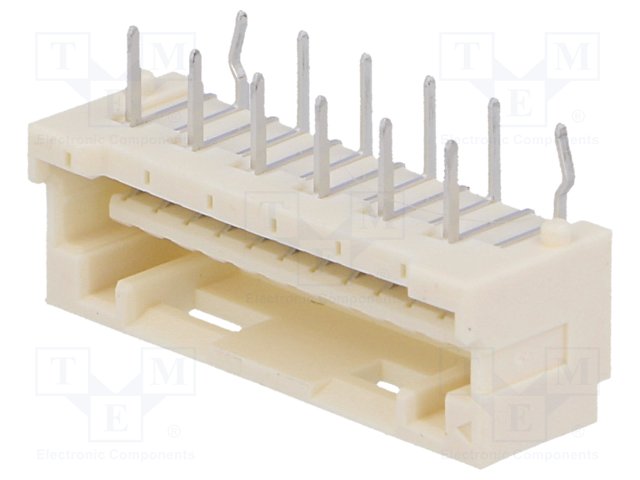

5031751200

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Type

Forked

Reliability

COMMERCIAL

Contact Materials

Copper Alloy

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Thickness Mating

39.4μin 1.00μm

Plating Thickness

39μin

Body Breadth

0.274 inch

Insulation Color

Beige

Kurşunsuz Kodu

yes

Yayın Yılı

2010

Seri

CLIK-Mate 503175

Çalışma Sıcaklığı

-40°C~105°C

Dielectric Withstanding Voltage

700VAC V

Din Conformance

NO

Contact Finish Mating

Tin

Mil Conformance

NO

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Sıra Sayısı

1

Pcb Contact Pattern

STAGGERED

Terminal

Kinked Pin, Solder

Connector Type

Receptacle

Fabrika Tedarik Süresi

15 Weeks

Mating Contact Pitch

0.059 inch

JESD-609 Kodu

e3

Number Of Pcb Rows

2

Özellikler

Board Guide

Ul Flammability Code

94V-0

Reference Standard

UL

Durability

30 Cycles

Insulation Resistance

500000000Ohm

Parça Durumu

Active

Contact Length Post

0.134 3.40mm

Iec Conformance

NO

Pitch Mating

0.059 1.50mm

RoHS Durumu

ROHS3 Compliant
