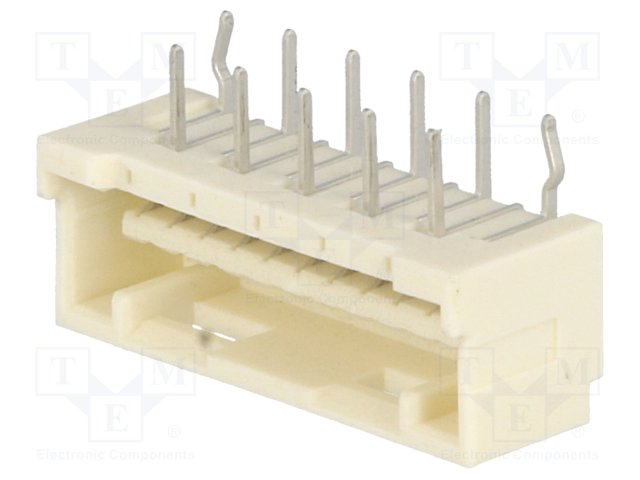

5031751110

Specifications

Akım Değeri

2A

Parça Durumu

Active

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Type

Forked

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Insulation Color

Beige

Kurşunsuz Kodu

yes

Contact Gender

FEMALE

Reach Svhc

No SVHC

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Iec Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Length Post

0.134 3.40mm

Insulation Height

0.274 6.95mm

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.059 1.50mm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Contact Finish Mating

Tin

Mil Conformance

NO

Çalışma Sıcaklığı

-40°C~105°C

Din Conformance

NO

Seri

CLIK-Mate 503175

Yayın Yılı

2010

Montaj Tipi

Through Hole, Right Angle

Orientation

Right Angle

Ambalaj

Tray

Montaj

Through Hole

Pozisyon Sayısı

11

Mixed Contacts

NO

JESD-609 Kodu

e3

Connector Type

Receptacle

Fabrika Tedarik Süresi

15 Weeks

Sıra Sayısı

1

Filter Feature

NO

Glow Wire Compliant

Non-compliant
