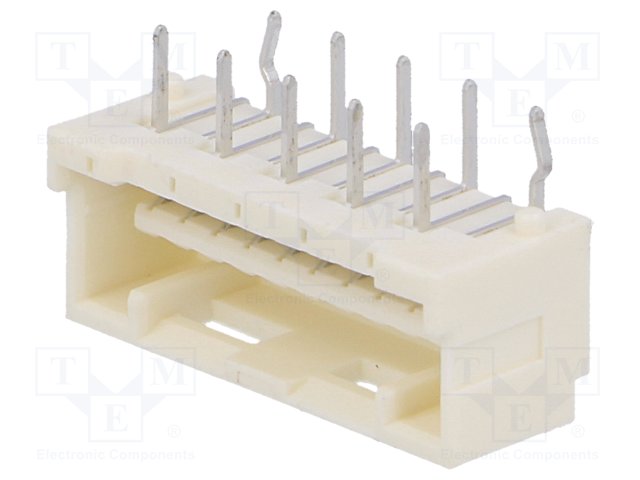

5031751000

Specifications

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Polarization Key

POLARIZED HOUSING

Contact Finish Mating

Tin

Mil Conformance

NO

Dielectric Withstanding Voltage

700VAC V

Çalışma Sıcaklığı

-40°C~105°C

Din Conformance

NO

Seri

CLIK-Mate 503175

Yayın Yılı

2010

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Mating Contact Pitch

0.059 inch

Connector Type

Receptacle

Fabrika Tedarik Süresi

15 Weeks

Sıra Sayısı

1

Filter Feature

NO

Terminal

Kinked Pin, Solder

Pcb Contact Pattern

STAGGERED

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Type

Forked

Contact Materials

Copper Alloy

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Insulation Color

Beige

Kurşunsuz Kodu

yes

Body Breadth

0.274 inch

Contact Finish Thickness Mating

39.4μin 1.00μm

Plating Thickness

39μin

Mounting Option1

LOCKING

Number Of Conductors

ONE

Contact Resistance

20mOhm

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Tray

Pozisyon Sayısı

10

Body Depth

0.285 inch

Mixed Contacts

NO

Board Mounting Option

PEG

Fastening Type

Latch Holder
