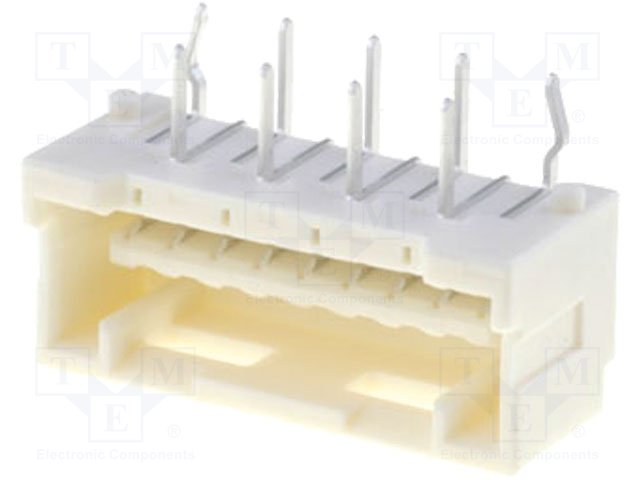

5031750900

Specifications

Insulation Resistance

500000000Ohm

Parça Durumu

Active

Durability

30 Cycles

Reference Standard

UL

Özellikler

Board Guide

Contact Gender

Female

Body Length Or Diameter

0.646 inch

Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Rated Current Signal

2A

Iec Conformance

NO

Contact Length Post

0.134 3.40mm

Pitch Mating

0.059 1.50mm

Insulation Height

0.274 6.95mm

RoHS Durumu

ROHS3 Compliant

Number Of Conductors

ONE

Contact Resistance

20mOhm

Montaj Tipi

Through Hole, Right Angle

Orientation

Right Angle

Body Depth

0.285 inch

Montaj

Through Hole

Ambalaj

Tray

Mixed Contacts

NO

Glow Wire Compliant

Non-compliant

Pcb Contact Row Spacing

3.7084 mm

Fastening Type

Latch Holder

Insulation Materials

Polyamide (PA), Nylon

Akım Değeri

2A

Nominal Gerilim

100V

Contact Type

Forked

Contact Finish Thickness Post

39.4μin 1.00μm

Reliability

COMMERCIAL

Contact Materials

Copper Alloy

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Beige

Reach Svhc

No SVHC

Kurşunsuz Kodu

yes

Lead Length

3.4mm
