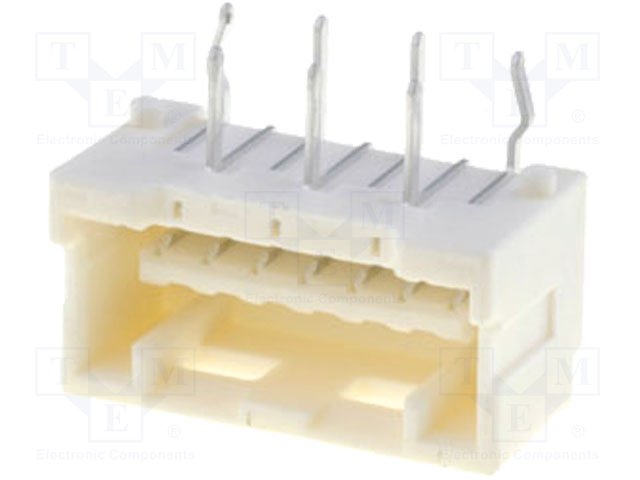

5031750700

Specifications

Contact Gender

FEMALE

Body Length Or Diameter

0.528 inch

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Rated Current Signal

2A

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.274 6.95mm

Pitch Mating

0.059 1.50mm

Contact Length Post

0.134 3.40mm

Iec Conformance

NO

Insulation Resistance

500000000Ohm

Parça Durumu

Active

Durability

30 Cycles

Reference Standard

UL

Ul Flammability Code

94V-0

Özellikler

Board Guide

Ambalaj

Tray

Montaj

Through Hole

Body Depth

0.285 inch

Mixed Contacts

NO

Fastening Type

Latch Holder

Glow Wire Compliant

Non-compliant

Number Of Conductors

ONE

Orientation

Right Angle

Montaj Tipi

Through Hole, Right Angle

Contact Resistance

20mOhm

Kurşunsuz Kodu

yes

Reach Svhc

No SVHC

Insulation Color

Beige

Plating Thickness

39μin

Contact Finish Thickness Mating

39.4μin 1.00μm

Nominal Gerilim

100V

Akım Değeri

2A

Insulation Materials

Polyamide (PA), Nylon

Contact Materials

Copper Alloy

Reliability

COMMERCIAL

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Type

Forked

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All
