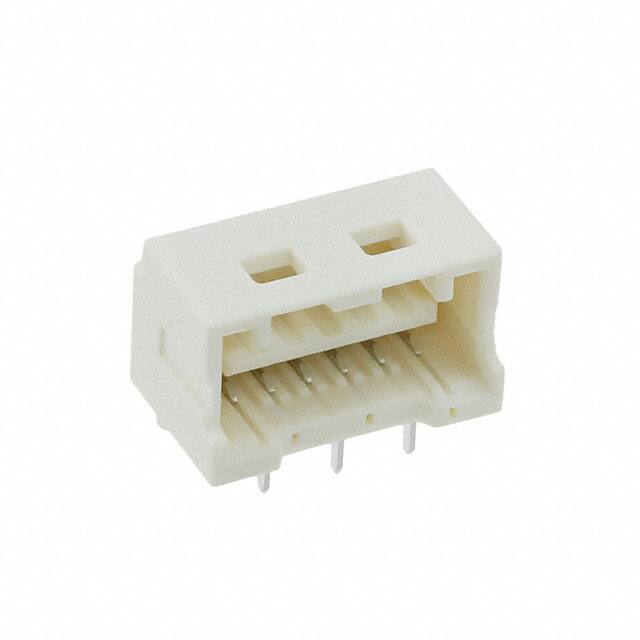

5031750600

Specifications

Fabrika Tedarik Süresi

15 Weeks

Connector Type

Receptacle

Terminal

Kinked Pin, Solder

Pcb Contact Pattern

STAGGERED

Filter Feature

NO

Sıra Sayısı

1

Number Of Contacts

6

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Mating Contact Pitch

0.059 inch

Din Conformance

NO

Çalışma Sıcaklığı

-40°C~105°C

Dielectric Withstanding Voltage

700VAC V

Yayın Yılı

2010

Seri

CLIK-Mate 503175

Polarization Key

POLARIZED HOUSING

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Mil Conformance

NO

Contact Finish Mating

Tin

Body Breadth

0.274 inch

Plating Thickness

39μin

Contact Finish Thickness Mating

39.4μin 1.00μm

Reach Svhc

No SVHC

Kurşunsuz Kodu

yes

Insulation Color

Beige

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

100V

Insulation Materials

Polyamide (PA), Nylon

Akım Değeri

2A

Reliability

COMMERCIAL

Contact Materials

Copper Alloy

Contact Type

Forked

Contact Finish Thickness Post

39.4μin 1.00μm

Pcb Contact Row Spacing

3.7084 mm

Fastening Type

Latch Holder

Glow Wire Compliant

Non-compliant

Body Depth

0.285 inch

Montaj

Through Hole

Ambalaj

Tray
