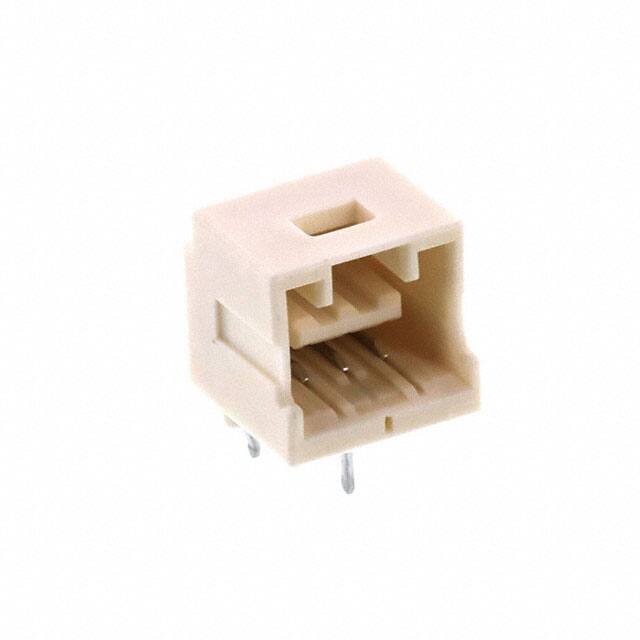

5031750300

Specifications

Nominal Gerilim

100V

Akım Değeri

2A

Insulation Materials

Polyamide (PA), Nylon

Contact Materials

Copper Alloy

Reliability

COMMERCIAL

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Type

Forked

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Kurşunsuz Kodu

yes

Reach Svhc

No SVHC

Insulation Color

Beige

Lead Length

3.4mm

Body Breadth

0.274 inch

Contact Finish Thickness Mating

39.4μin 1.00μm

Polarization Key

POLARIZED HOUSING

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Mil Conformance

NO

Contact Finish Mating

Tin

Housing Material

Polyamide

Din Conformance

NO

Dielectric Withstanding Voltage

700VAC V

Çalışma Sıcaklığı

-40°C~105°C

Seri

CLIK-Mate 503175

Yayın Yılı

2010

Number Of Pcb Rows

2

JESD-609 Kodu

e3

Mating Contact Pitch

0.059 inch

Fabrika Tedarik Süresi

15 Weeks

Connector Type

Receptacle

Terminal

Kinked Pin, Solder

Pcb Contact Pattern

STAGGERED

Sıra Sayısı

1

Number Of Contacts

3

Filter Feature

NO

Parça Durumu

Active

Insulation Resistance

500000000Ohm

Reference Standard

UL

Ul Flammability Code

94V-0

Özellikler

Board Guide
