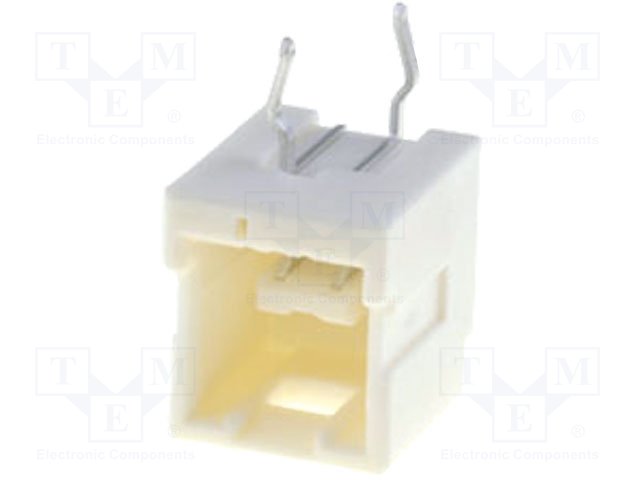

5031750210

Specifications

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Contact Gender

FEMALE

Kurşunsuz Kodu

yes

Insulation Color

Beige

Pitch Mating

0.059 1.50mm

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.274 6.95mm

Iec Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Length Post

0.134 3.40mm

Contact Materials

Copper Alloy

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Type

Forked

Insulation Materials

Polyamide (PA), Nylon

Parça Durumu

Active

Ul Flammability Code

94V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Mixed Contacts

NO

Pozisyon Sayısı

2

Ambalaj

Tray

Terminal

Kinked Pin, Solder

Fastening Type

Latch Holder

Filter Feature

NO

Sıra Sayısı

1

Fabrika Tedarik Süresi

15 Weeks

Connector Type

Receptacle

Mil Conformance

NO

Contact Finish Mating

Tin

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Montaj Tipi

Through Hole, Right Angle

Yayın Yılı

2010

Seri

CLIK-Mate 503175

Din Conformance

NO

Çalışma Sıcaklığı

-40°C~105°C
