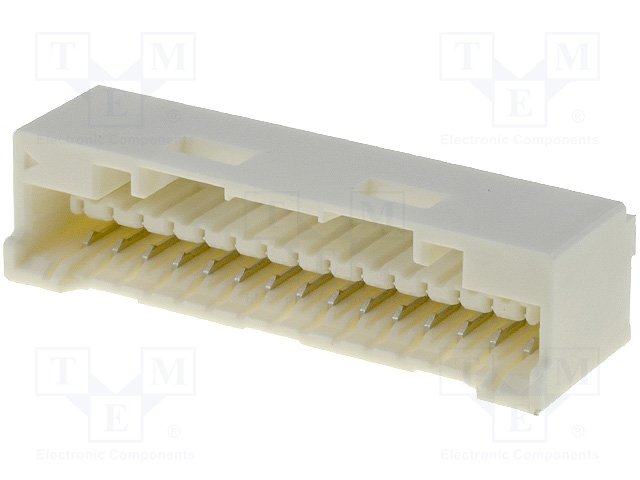

5031591500

Specifications

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.313 7.95mm

Pitch Mating

0.059 1.50mm

Contact Length Post

0.134 3.40mm

Contact Finish Thickness Mating

39.4μin 1.00μm

Reach Svhc

No SVHC

Style

Board to Cable/Wire

Material Flammability Rating

UL94 V-0

Depth

6.55mm

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Board Guide

Housing Color

Beige

Nominal Gerilim

100V

Akım Değeri

2A

Parça Durumu

Active

Insulation Materials

Polyamide (PA), Nylon

Contact Materials

Copper Alloy

Contact Type

Forked

Contact Finish Thickness Post

39.4μin 1.00μm

Fabrika Tedarik Süresi

12 Weeks

Connector Type

Receptacle

Terminal

Kinked Pin, Solder

Fastening Type

Latch Holder

Sıra Sayısı

1

Number Of Contacts

15

Glow Wire Compliant

Non-compliant

Montaj

Through Hole

Ambalaj

Tray

Housing Material

Polyamide

Çalışma Sıcaklığı

-40°C~105°C

Orientation

Vertical

Montaj Tipi

Through Hole

Seri

CLIK-Mate 503159

Contact Resistance

20mOhm

Yayın Yılı

2009

Uzunluk

25.4mm

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Contact Finish Mating

Tin
