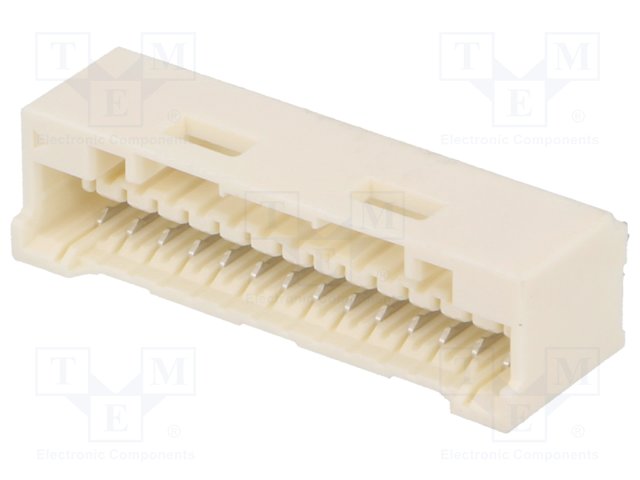

5031591400

Specifications

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.313 7.95mm

Pitch Mating

0.059 1.50mm

Contact Length Post

0.134 3.40mm

Iec Conformance

NO

Rated Current Signal

2A

Material Flammability Rating

UL94 V-0

Style

Board to Cable/Wire

Contact Gender

FEMALE

Özellikler

Board Guide

Reference Standard

UL

Durability

30 Cycles

Insulation Resistance

500000000Ohm

Parça Durumu

Active

Fastening Type

Latch Holder

Pcb Contact Row Spacing

2.0066 mm

Mixed Contacts

NO

Ambalaj

Tray

Pozisyon Sayısı

14

Montaj Tipi

Through Hole

Contact Resistance

20mOhm

Additional Feature

CLIK-MATE, POLARIZED

Number Of Conductors

ONE

Mounting Option1

LOCKING

Plating Thickness

39μin

Contact Finish Thickness Mating

39.4μin 1.00μm

Body Breadth

0.258 inch

Kurşunsuz Kodu

yes

Insulation Color

Beige

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

Contact Materials

Copper Alloy

Reliability

COMMERCIAL

Contact Finish Thickness Post

39.4μin 1.00μm

Contact Type

Forked

Insulation Materials

Polyamide (PA), Nylon

Terminal

Kinked Pin, Solder

Pcb Contact Pattern

STAGGERED

Sıra Sayısı

1

Filter Feature

NO
