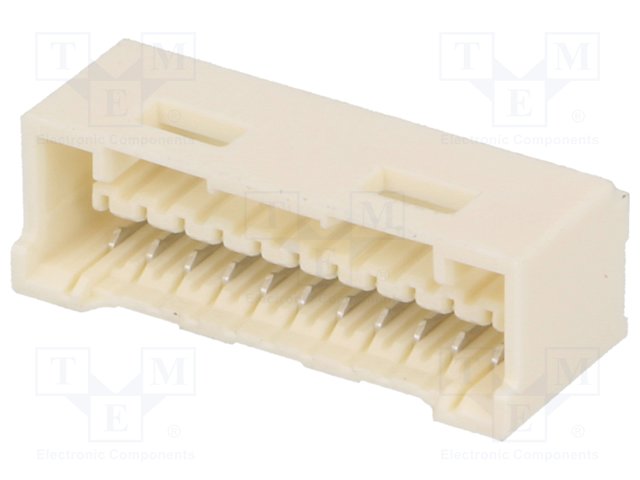

5031591100

Specifications

Uzunluk

19.4mm

Insulation Height

0.313 7.95mm

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Thickness Post

39.4μin 1.00μm

Housing Color

Beige

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Montaj Tipi

Through Hole

Contact Finish Mating

Tin

Nominal Gerilim

100V

Contact Type

Forked

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Ambalaj

Tray

Number Of Positions Loaded

All

Depth

6.55mm

Pozisyon Sayısı

11

Contact Materials

Copper Alloy

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Housing Material

Polyamide

Özellikler

Board Guide

Style

Board to Cable/Wire

Glow Wire Compliant

Non-compliant

Seri

CLIK-Mate 503159

Contact Length Post

0.134 3.40mm

RoHS Durumu

ROHS3 Compliant

Reach Svhc

No SVHC

Montaj

Through Hole

Fabrika Tedarik Süresi

15 Weeks

Akım Değeri

2A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Resistance

20mOhm

Orientation

Vertical

Terminal

Kinked Pin, Solder

Çalışma Sıcaklığı

-40°C~105°C

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Yayın Yılı

2011

ECCN Kodu

EAR99
