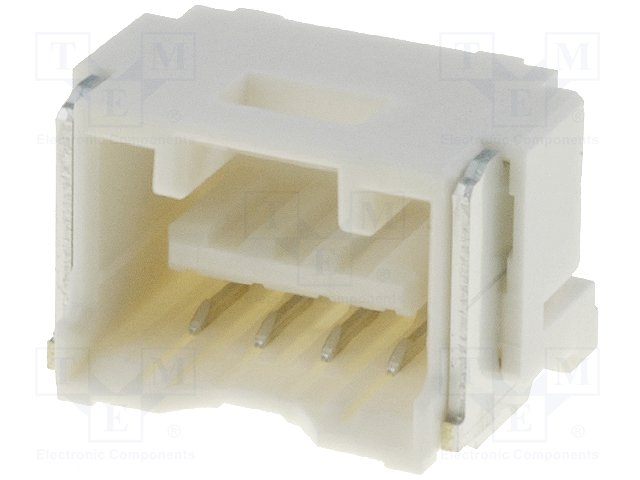

5031590900

Specifications

Yayın Yılı

2011

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Terminal

Kinked Pin, Solder

Orientation

Vertical

Contact Resistance

20mOhm

Akım Değeri

2A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Reach Svhc

No SVHC

Seri

CLIK-Mate 503159

Contact Length Post

0.134 3.40mm

RoHS Durumu

ROHS3 Compliant

Style

Board to Cable/Wire

Glow Wire Compliant

Non-compliant

Özellikler

Board Guide

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

REACH Uyumluluk Kodu

unknown

Contact Materials

Copper Alloy

Housing Material

Polyamide

Number Of Positions Loaded

All

Depth

6.55mm

Ambalaj

Tray

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Number Of Contacts

9

Contact Type

Forked

Montaj Tipi

Through Hole

Contact Finish Mating

Tin

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Insulation Height

0.313 7.95mm

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Materials

Polyamide (PA), Nylon

Housing Color

Beige

Uzunluk

16.4mm
