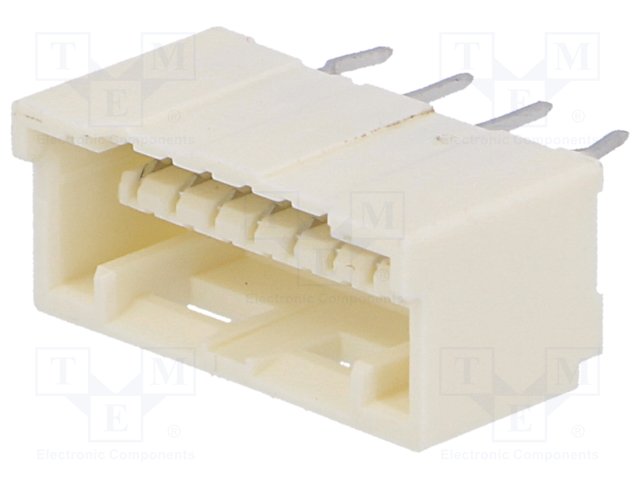

5031590810

Specifications

Yayın Yılı

2011

Dielectric Withstanding Voltage

500VAC V

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

2

Contact Resistance

20mOhm

Din Conformance

NO

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Pattern

STAGGERED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Additional Feature

CLIK-MATE, POLARIZED

Durability

30 Cycles

Style

Board to Cable/Wire

Contact Length Post

0.134 3.40mm

Contact Materials

Copper Alloy

Ambalaj

Tray

Sıra Sayısı

1

Pcb Contact Row Spacing

2.0066 mm

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Materials

Polyamide (PA), Nylon

Insulation Color

Beige

Insulation Height

0.313 7.95mm

Rated Current Signal

2A

Reference Standard

UL

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Kurşunsuz Kodu

no

Çalışma Sıcaklığı

-40°C~105°C

Terminal

Kinked Pin, Solder

Insulation Resistance

500000000Ohm

Plating Thickness

39μin

Mounting Option1

LOCKING

RoHS Durumu

Non-RoHS Compliant

Seri

CLIK-Mate 503159

Pozisyon Sayısı

8

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Number Of Positions Loaded

All
