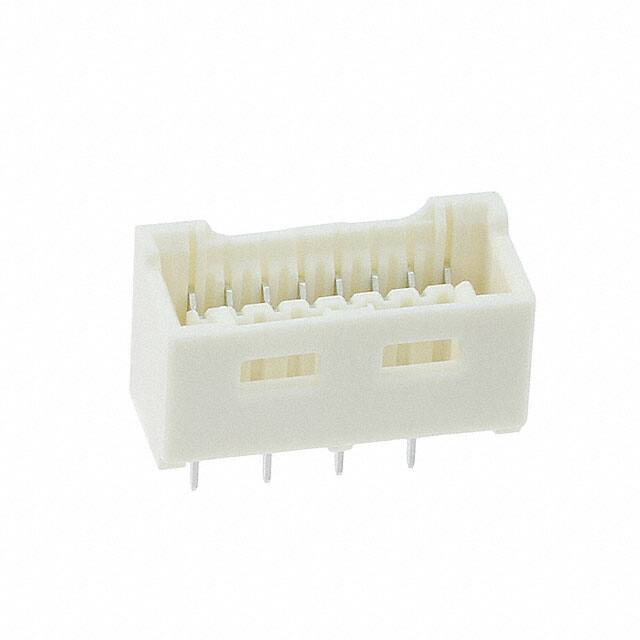

5031590800

Specifications

Plating Thickness

39μin

Orientation

Vertical

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Filter Feature

NO

Polarization Key

POLARIZED HOUSING

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-40°C~105°C

Terminal

Kinked Pin, Solder

Insulation Resistance

500000000Ohm

Contact Type

Forked

Number Of Contacts

8

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Montaj Tipi

Through Hole

Housing Color

Beige

Iec Conformance

NO

Connector Type

Receptacle

Contact Finish Thickness Mating

39.4μin 1.00μm

Uzunluk

14.9mm

Contact Gender

Female

Özellikler

Board Guide

RoHS Durumu

ROHS3 Compliant

Seri

CLIK-Mate 503159

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Number Of Positions Loaded

All

Mil Conformance

NO

Reliability

COMMERCIAL

Contact Resistance

20mOhm

Din Conformance

NO

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

2A

Pcb Contact Pattern

STAGGERED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Additional Feature

CLIK-MATE, POLARIZED

Reach Svhc

No SVHC

Montaj

Through Hole
