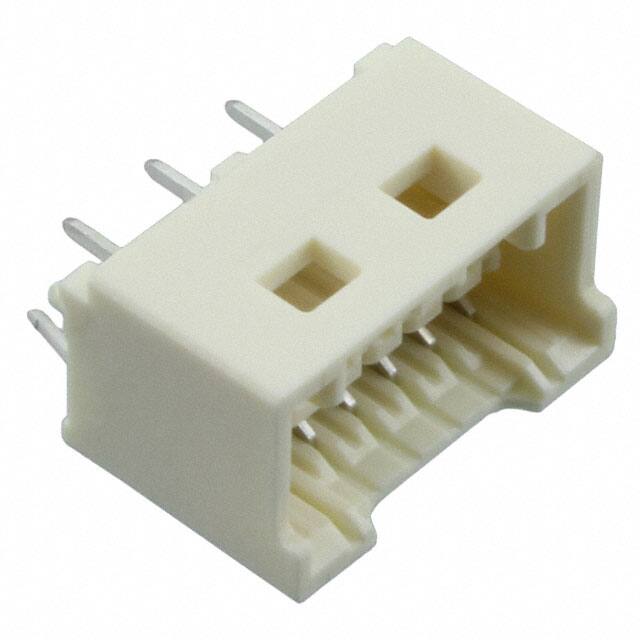

5031590600

Specifications

Ambalaj

Tray

Number Of Positions Loaded

All

Depth

6.55mm

Contact Materials

Copper Alloy

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Housing Material

Polyamide

Özellikler

Board Guide

Glow Wire Compliant

Non-compliant

Style

Board to Cable/Wire

Contact Length Post

0.134 3.40mm

Seri

CLIK-Mate 503159

RoHS Durumu

ROHS3 Compliant

Contact Gender

Female

Uzunluk

11.9mm

Insulation Height

0.313 7.95mm

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Thickness Post

39.4μin 1.00μm

Housing Color

Beige

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Montaj Tipi

Through Hole

Contact Finish Mating

Tin

Nominal Gerilim

100V

Number Of Contacts

6

Contact Type

Forked

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Sıra Sayısı

1

Flammability Rating

UL94 V-0

Terminal

Kinked Pin, Solder

Çalışma Sıcaklığı

-40°C~105°C

Parça Durumu

Active

Pitch Mating

0.059 1.50mm

Lead Length

3.4mm

Yayın Yılı

2011

ECCN Kodu

EAR99

Reach Svhc

No SVHC

Montaj

Through Hole

Fabrika Tedarik Süresi

7 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)
