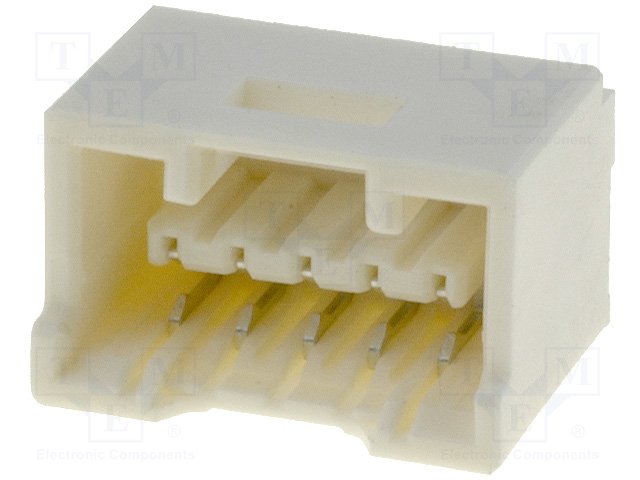

5031590500

Specifications

Akım Değeri

2A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

Orientation

Vertical

Contact Resistance

20mOhm

Montaj

Through Hole

Reach Svhc

No SVHC

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Yayın Yılı

2009

Terminal

Kinked Pin, Solder

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole

Contact Finish Mating

Tin

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Number Of Contacts

5

Contact Type

Forked

Uzunluk

10.4mm

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Insulation Height

0.313 7.95mm

Insulation Materials

Polyamide (PA), Nylon

Contact Finish Thickness Post

39.4μin 1.00μm

Housing Color

Beige

Contact Materials

Copper Alloy

REACH Uyumluluk Kodu

unknown

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Housing Material

Polyamide

Contact Length Post

0.134 3.40mm

Seri

CLIK-Mate 503159

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide

Glow Wire Compliant

Non-compliant

Style

Board to Cable/Wire

Ambalaj

Tray

Number Of Positions Loaded

All

Depth

6.55mm
