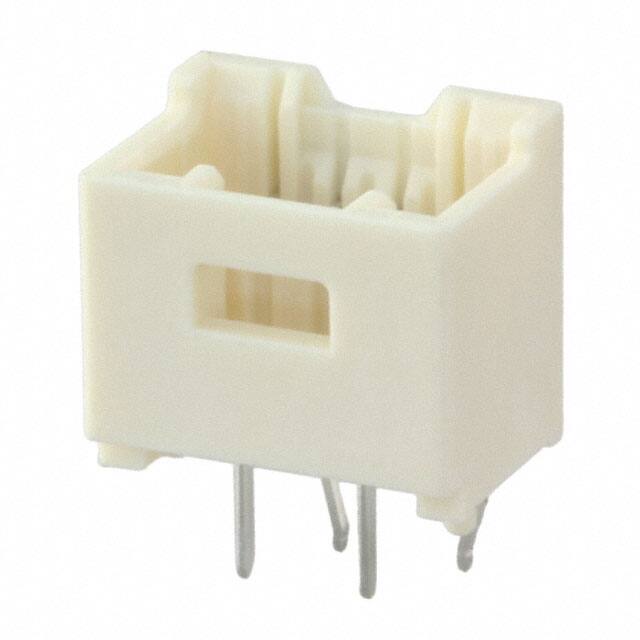

5031590400

Specifications

Seri

CLIK-Mate 503159

RoHS Durumu

ROHS3 Compliant

Özellikler

Board Guide

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Mil Conformance

NO

Number Of Positions Loaded

All

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Number Of Contacts

4

Contact Type

Forked

Montaj Tipi

Through Hole

Contact Finish Mating

Tin

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Housing Color

Beige

Iec Conformance

NO

Uzunluk

8.9mm

Contact Gender

Female

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Terminal

Kinked Pin, Solder

Insulation Resistance

500000000Ohm

Orientation

Vertical

Plating Thickness

39μin

Contact Length Post

0.134 3.40mm

Glow Wire Compliant

Non-compliant

Style

Board to Cable/Wire

Contact Materials

Copper Alloy

Housing Material

Polyamide

Depth

6.55mm

Ambalaj

Tray

Sıra Sayısı

1

Nominal Gerilim

100V

Pcb Contact Row Spacing

2.0066 mm

Insulation Height

0.313 7.95mm
