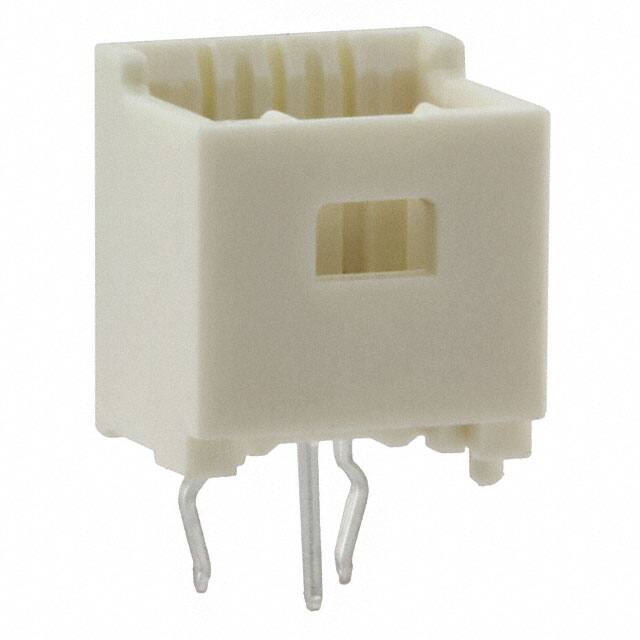

5031590300

Specifications

Dielectric Withstanding Voltage

500VAC V

Number Of Pcb Rows

2

Mating Contact Pitch

0.059 inch

Yayın Yılı

2011

Fabrika Tedarik Süresi

12 Weeks

Number Of Conductors

ONE

Pcb Contact Pattern

STAGGERED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Contact Resistance

20mOhm

Body Breadth

0.258 inch

Din Conformance

NO

Additional Feature

CLIK-MATE, POLARIZED

Contact Materials

Copper Alloy

Style

Board to Cable/Wire

Contact Length Post

0.134 3.40mm

Ambalaj

Tray

Pcb Contact Row Spacing

2.0066 mm

Sıra Sayısı

1

Reference Standard

UL

Rated Current Signal

2A

Insulation Color

Beige

Insulation Height

0.313 7.95mm

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

ECCN Kodu

EAR99

Insulation Resistance

500000000Ohm

Terminal

Kinked Pin, Solder

Polarization Key

POLARIZED HOUSING

Filter Feature

NO

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Pozisyon Sayısı

3

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Özellikler

Board Guide

Seri

CLIK-Mate 503159

RoHS Durumu

ROHS3 Compliant
