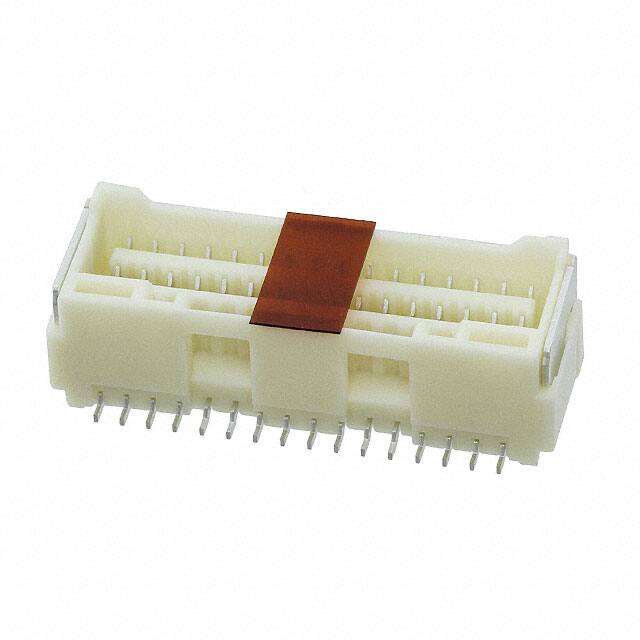

5031543290

Specifications

Sıra Sayısı

2

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Contact Type

Forked

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount

Connector Type

Receptacle

Contact Finish Thickness Mating

39.4μin 1.00μm

Insulation Materials

Resin

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Height

0.344 8.75mm

Insulation Color

Beige

Contact Gender

FEMALE

Reference Standard

UL

RoHS Durumu

ROHS3 Compliant

Seri

CLIK-Mate 503154

Style

Board to Cable/Wire

Özellikler

Pick and Place, Solder Retention

Contact Materials

Copper Alloy

Body Depth

0.346 inch

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Pozisyon Sayısı

32

Number Of Positions Loaded

All

Body Length Or Diameter

1.114 inch

Reliability

COMMERCIAL

Ambalaj

Tape & Reel (TR)

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Mounting Option1

LOCKING

ECCN Kodu

EAR99

Yayın Yılı

2009

Number Of Pcb Rows

2

Mating Contact Pitch

0.059 inch

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Çalışma Sıcaklığı

-40°C~105°C

HTS Kodu

8536.69.40.40

Terminal Adımı

1.4986mm
