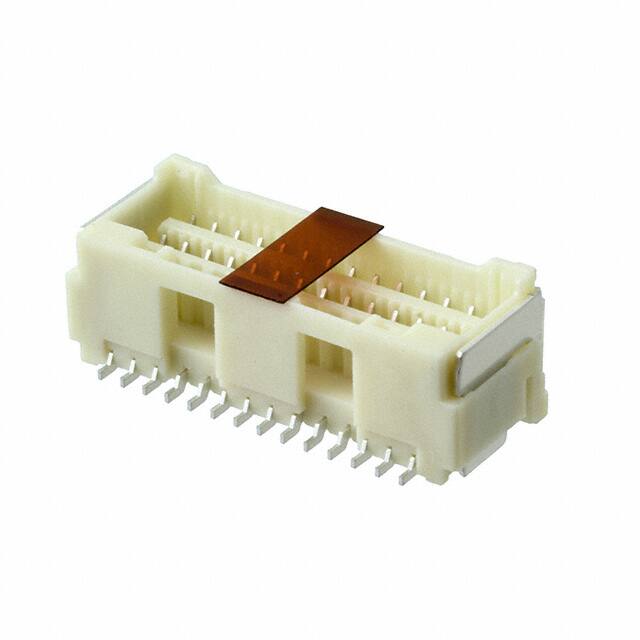

5031542890

Specifications

Din Conformance

NO

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Additional Feature

CLIK-MATE, POLARIZED

Yayın Yılı

2011

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

2

Total Number Of Contacts

28

Sıra Sayısı

2

Insulation Height

0.344 8.75mm

Insulation Color

Beige

Insulation Materials

Resin

Contact Finish Thickness Post

39.4μin 1.00μm

Reference Standard

UL

Style

Board to Cable/Wire

Body Depth

0.346 inch

Contact Materials

Copper Alloy

Body Length Or Diameter

0.996 inch

Ambalaj

Tape & Reel (TR)

Mounting Option1

LOCKING

Pitch Mating

0.059 1.50mm

Parça Durumu

Active

Terminal Adımı

1.5mm

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Filter Feature

NO

Insulation Resistance

500000000Ohm

Terminal

Solder

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Contact Type

Forked

Montaj Tipi

Surface Mount

Contact Finish Mating

Tin

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Iec Conformance

NO

Contact Gender

FEMALE
