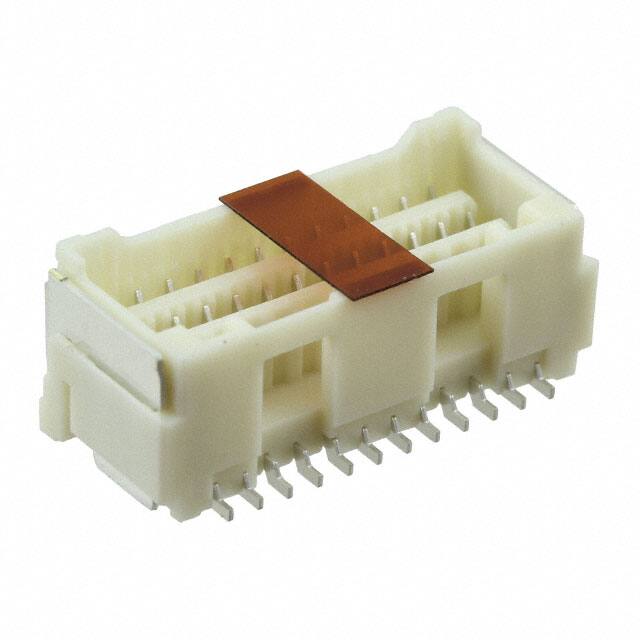

5031542490

Specifications

Ambalaj

Tape & Reel (TR)

Reliability

COMMERCIAL

JESD-609 Kodu

e3

Body Length Or Diameter

0.878 inch

Number Of Positions Loaded

All

Pozisyon Sayısı

24

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Body Depth

0.346 inch

Contact Materials

Copper Alloy

Style

Board to Cable/Wire

Özellikler

Pick and Place, Solder Retention

RoHS Durumu

ROHS3 Compliant

Seri

CLIK-Mate 503154

Contact Gender

FEMALE

Reference Standard

UL

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Materials

Resin

Insulation Color

Beige

Insulation Height

0.344 8.75mm

Connector Type

Receptacle

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount

Contact Type

Forked

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Total Number Of Contacts

24

Terminal

Solder

Insulation Resistance

500000000Ohm

Çalışma Sıcaklığı

-40°C~105°C

Kurşunsuz Kodu

yes

Terminal Adımı

1.4986mm

Number Of Pcb Rows

2

Mating Contact Pitch

0.059 inch

Parça Durumu

Active

Pitch Mating

0.059 1.50mm

Yayın Yılı

2011

Mounting Option1

LOCKING

Number Of Conductors

ONE
