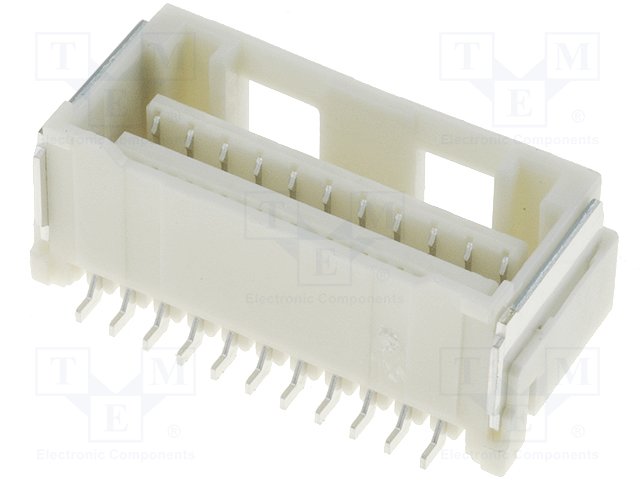

5031542290

Specifications

Contact Gender

FEMALE

Reference Standard

UL

Number Of Circuits

22

Insulation Materials

Resin

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Height

0.344 8.75mm

Insulation Color

Beige

Connector Type

Receptacle

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount

Contact Type

Forked

Sıra Sayısı

2

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Reliability

COMMERCIAL

Body Length Or Diameter

0.819 inch

Number Of Positions Loaded

All

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Body Depth

0.346 inch

Contact Materials

Copper Alloy

Style

Board to Cable/Wire

Glow Wire Compliant

Non-compliant

Özellikler

Pick and Place, Solder Retention

RoHS Durumu

ROHS3 Compliant

Seri

CLIK-Mate 503154

Reach Svhc

No SVHC

Montaj

Surface Mount

Number Of Conductors

ONE

Fabrika Tedarik Süresi

13 Weeks

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Vertical

Total Number Of Contacts

22

Insulation Resistance

500000000Ohm

Terminal

Solder

Çalışma Sıcaklığı

-40°C~105°C

HTS Kodu

8536.69.40.40

Terminal Adımı

1.4986mm
