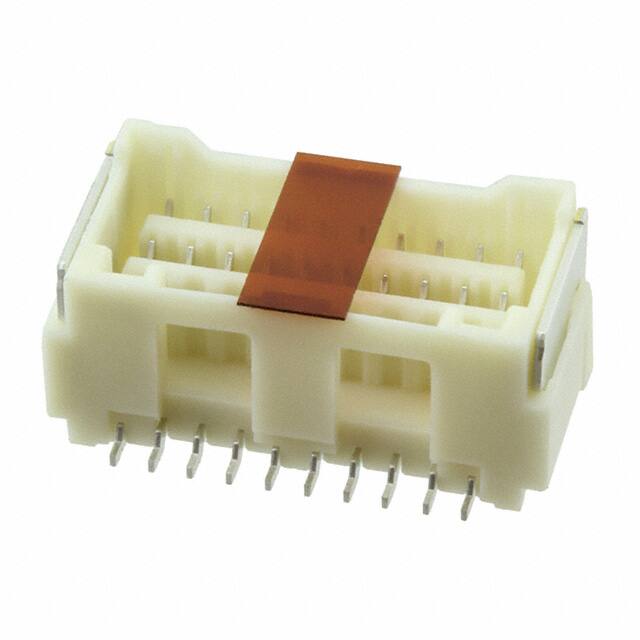

5031542090

Specifications

Sıra Sayısı

2

Insulation Materials

Resin

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Height

0.344 8.75mm

Insulation Color

Beige

Reference Standard

UL

Style

Board to Cable/Wire

Body Depth

0.346 inch

Contact Materials

Copper Alloy

Body Length Or Diameter

0.76 inch

Ambalaj

Tape & Reel (TR)

Din Conformance

NO

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Additional Feature

CLIK-MATE, POLARIZED

Yayın Yılı

2011

Mating Contact Pitch

0.059 inch

Number Of Pcb Rows

2

Total Number Of Contacts

20

Contact Type

Forked

Material Flammability Rating

UL94 V-0

Fastening Type

Latch Holder

Contact Finish Mating

Tin

Montaj Tipi

Surface Mount

Iec Conformance

NO

Connector Type

Receptacle

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Gender

FEMALE

Özellikler

Pick and Place, Solder Retention

RoHS Durumu

ROHS3 Compliant

Seri

CLIK-Mate 503154

Pozisyon Sayısı

20

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Mil Conformance

NO

Reliability

COMMERCIAL
