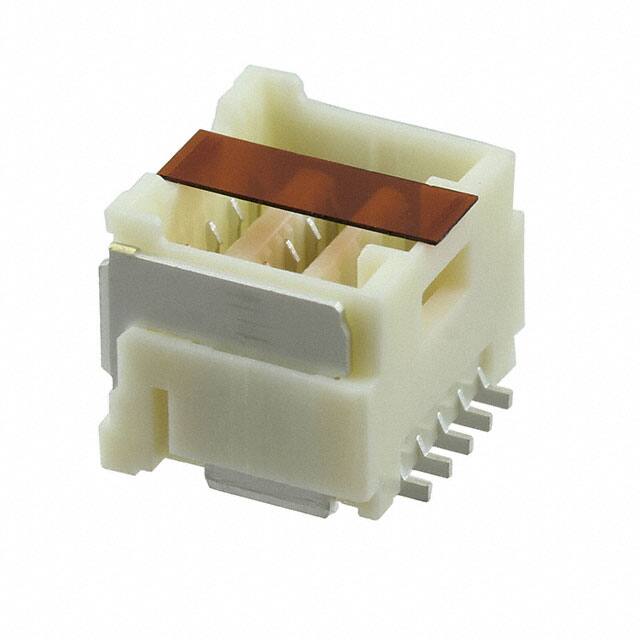

5031541090

Specifications

Contact Gender

FEMALE

Iec Conformance

NO

Contact Finish Thickness Mating

39.4μin 1.00μm

Connector Type

Receptacle

Montaj Tipi

Surface Mount

Contact Finish Mating

Tin

Contact Type

Forked

Fastening Type

Latch Holder

Material Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Mil Conformance

NO

Number Of Positions Loaded

All

JESD-609 Kodu

e3

Pozisyon Sayısı

10

Applications

Automotive, General Purpose, Industrial, Lighting, Medical

Özellikler

Pick and Place, Solder Retention

Seri

CLIK-Mate 503154

RoHS Durumu

ROHS3 Compliant

Mounting Option1

LOCKING

Terminal

Solder

Insulation Resistance

500000000Ohm

Filter Feature

NO

Terminal Adımı

1.5mm

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-40°C~105°C

Parça Durumu

Active

Pitch Mating

0.059 1.50mm

Reference Standard

UL

Insulation Color

Beige

Insulation Height

0.344 8.75mm

Insulation Materials

Resin

Contact Finish Thickness Post

39.4μin 1.00μm

Sıra Sayısı

2

Ambalaj

Tape & Reel (TR)

Body Length Or Diameter

0.465 inch

Body Depth

0.346 inch

Contact Materials

Copper Alloy

Style

Board to Cable/Wire

Additional Feature

CLIK-MATE, POLARIZED

Fabrika Tedarik Süresi

10 Weeks
